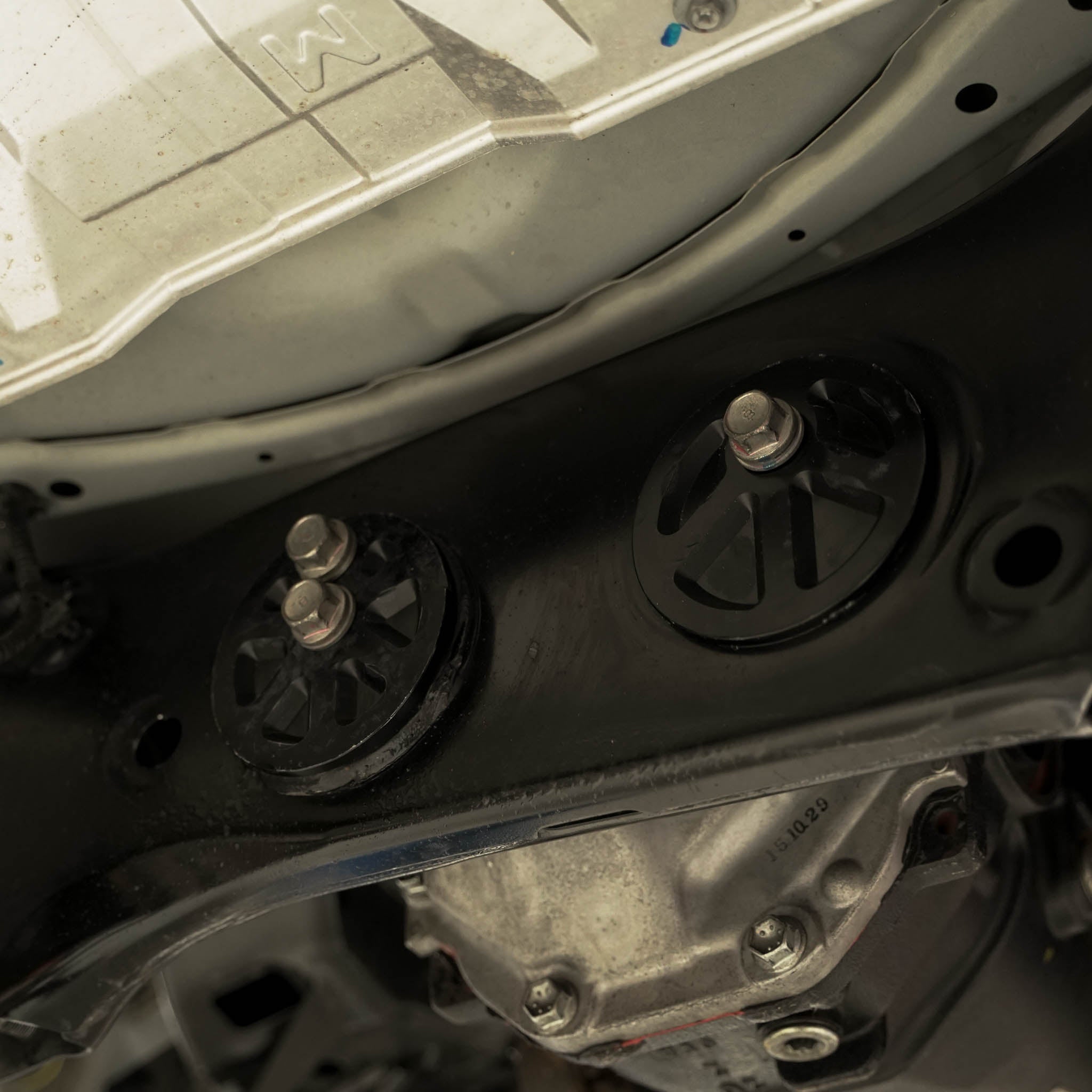

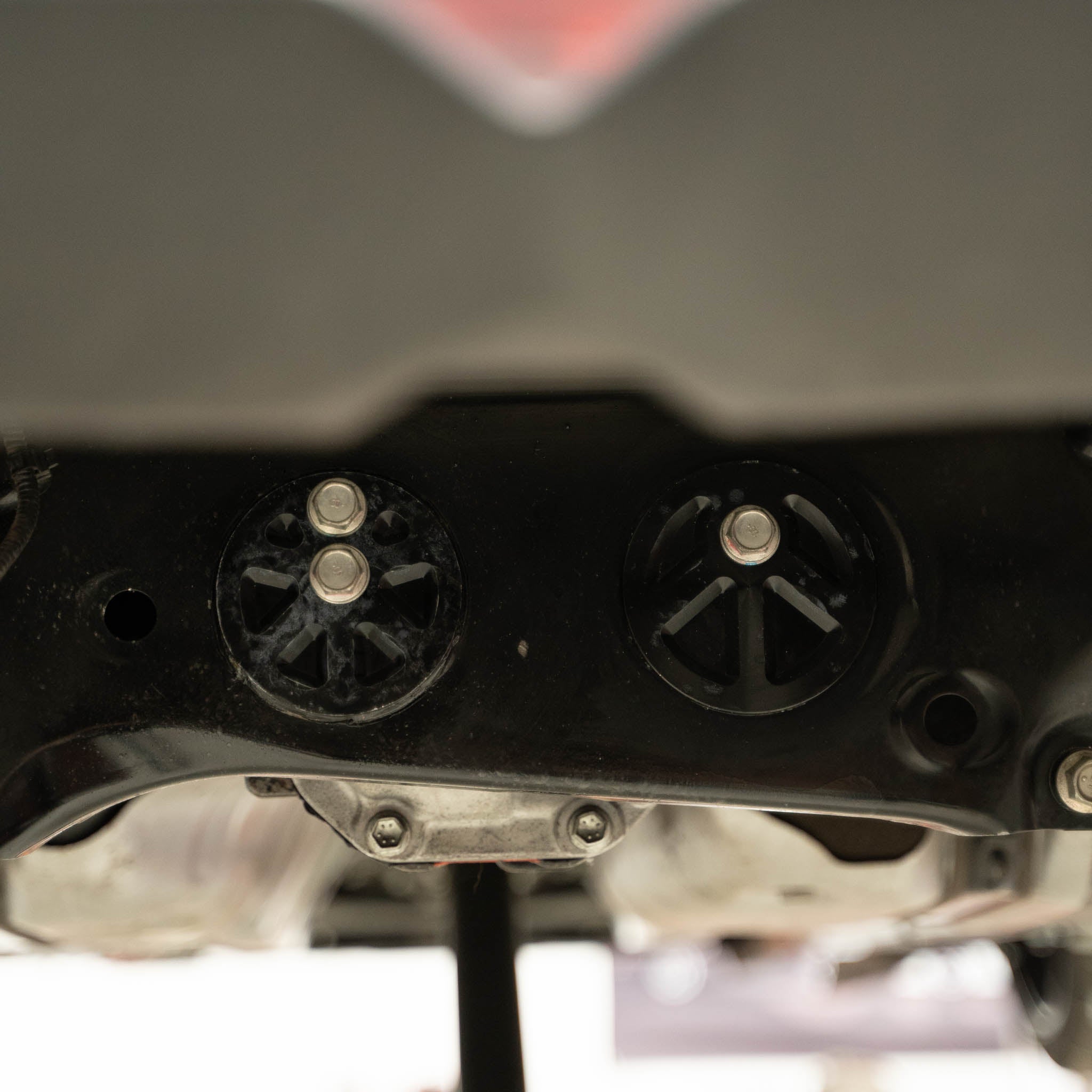

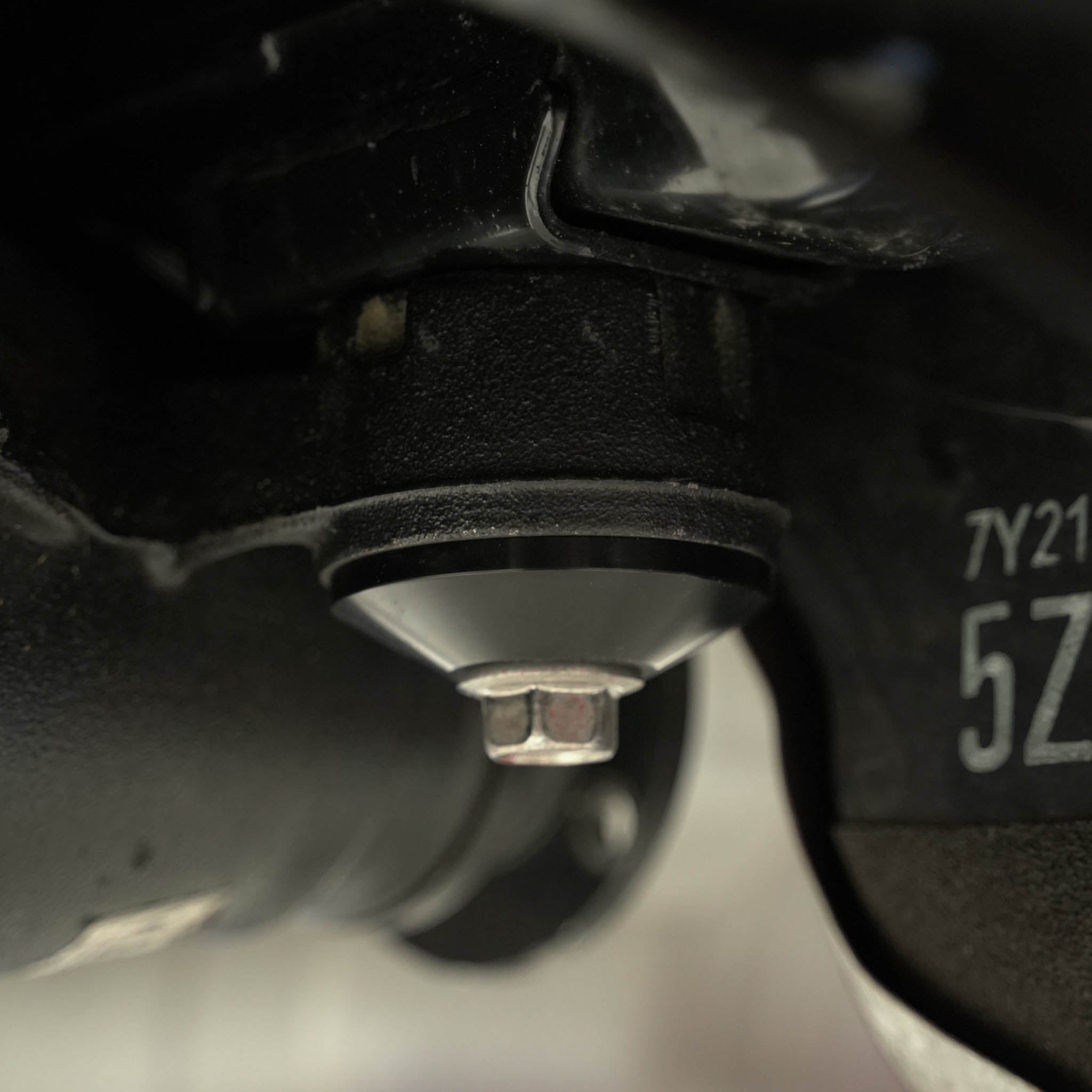

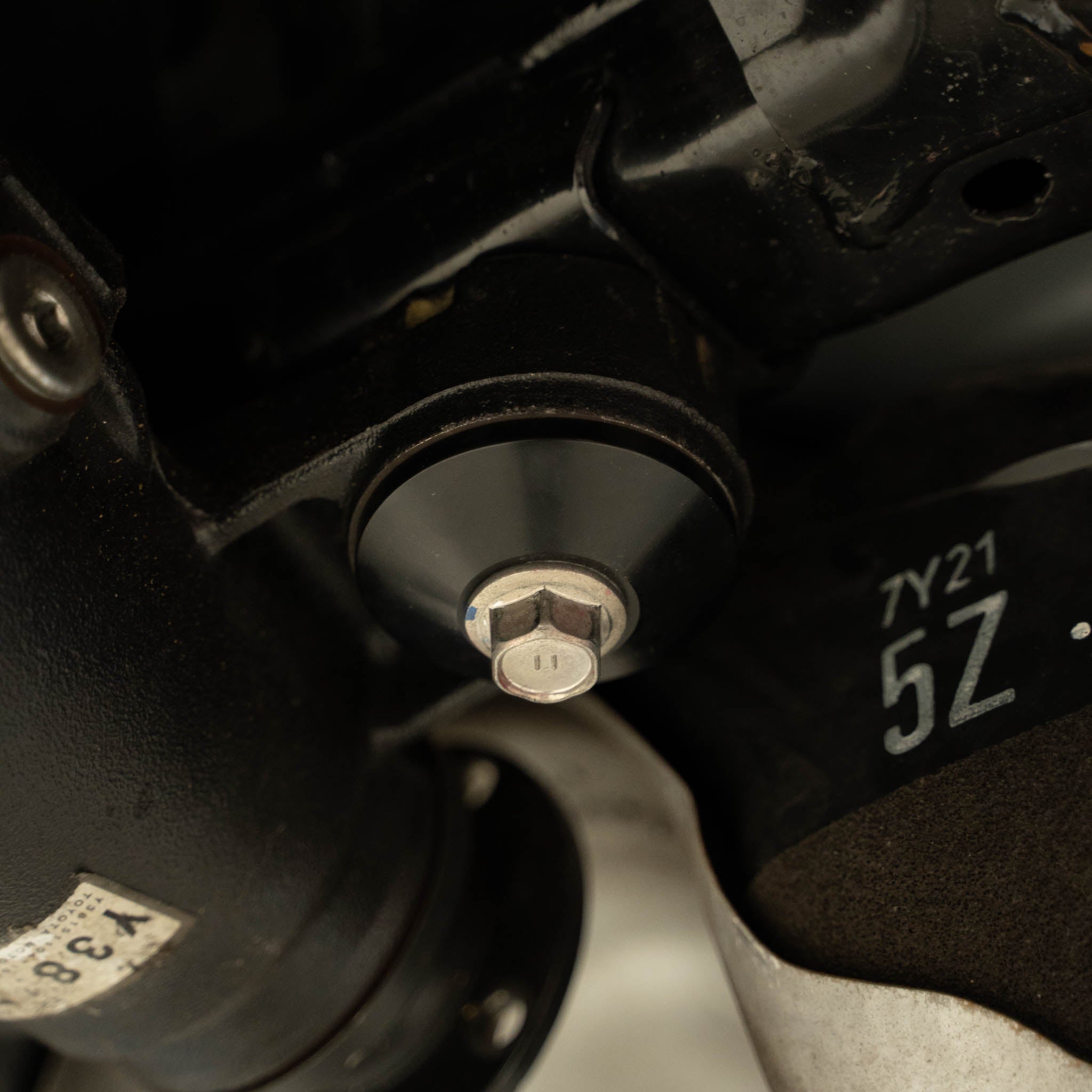

Customer install
Customer install
Customer install
Customer install

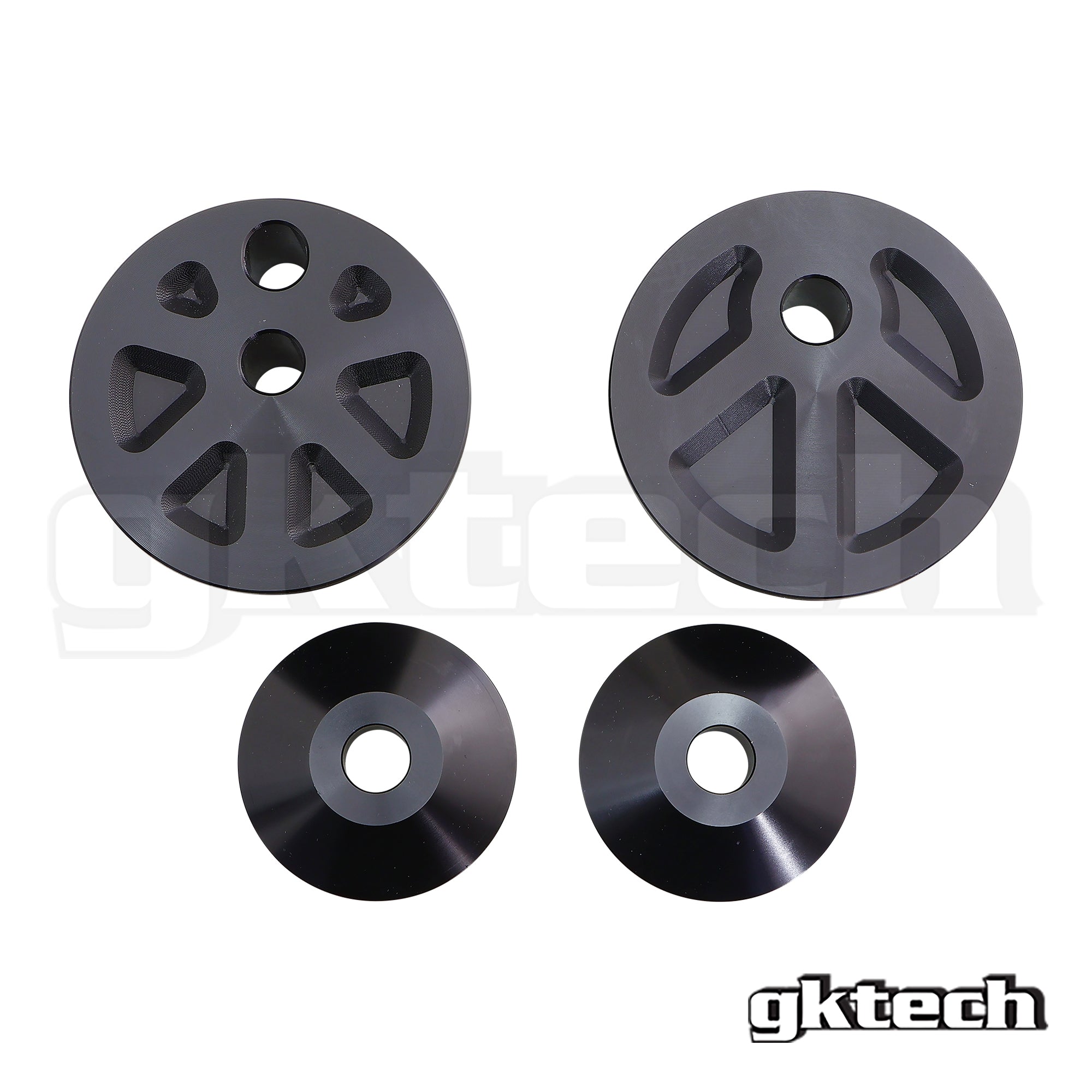

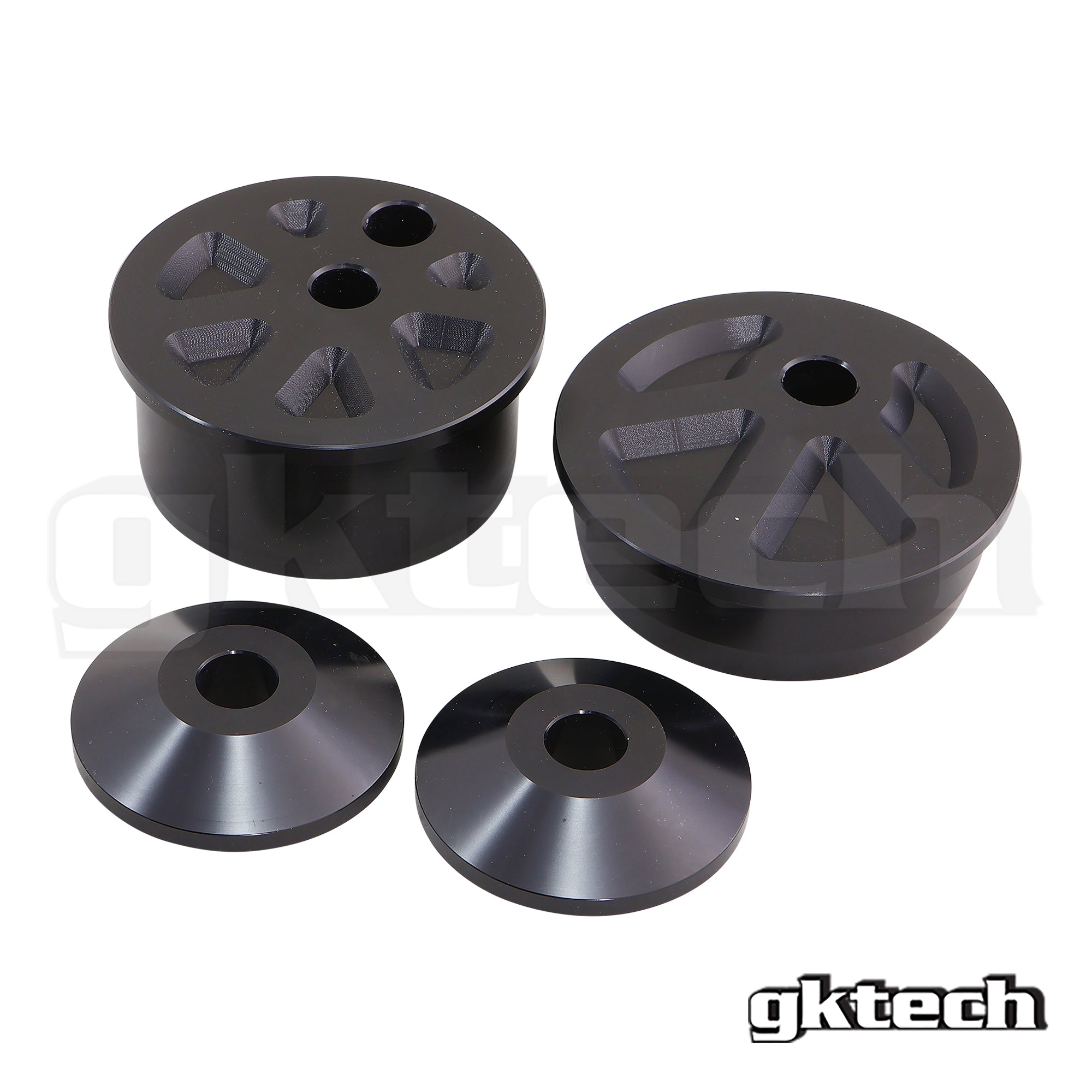

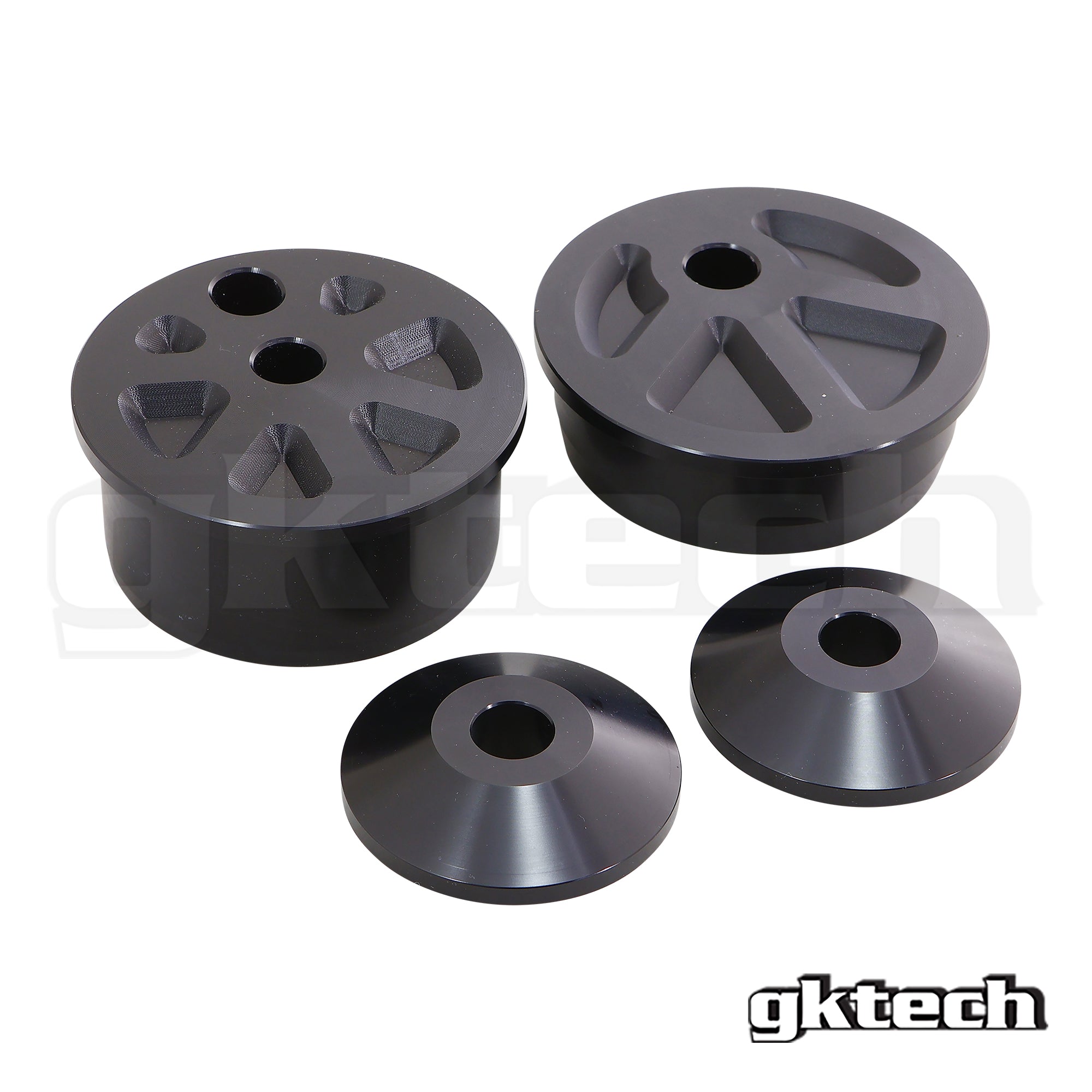

The GKTECH solid aluminium diff bushings are a direct replacement of the standard items and ensure that movement of the diff is kept to a minimum within the subframe which is quite common under hard driving conditions.

In addition to limiting the movement of your rear diff our risers raise the diff within the subframe 20mm limiting the angle of your axles on a lowered vehicle. If your car isn't super low, the OEM style solid bush is suggested.

- CNC machined 6061-T6 aluminium and anodized black

OEM Style or 20mm raised version?
If your car is lowered, go with the 20mm raised version. There are no negatives and it fixes up bad axle angles which cause blown cv's.

NOTE: On SUPER low cars running the 20mm risers your axles may then come into contact with the rear upper camber arm and or subframe which must be notched accordingly, it's uncommon but not impossible. This is not an issue at all with the OEM style solid bushes.

The 20mm risers were also designed around the OEM diff/axle/tailshaft, if you have aftermarket axles/tailshaft then it may make contact with the heat shield, which is circumstantial and needs to be checked.

GKTECH

FR-S / GR86 / BR-Z chassis Solid diff bushings

15% OFF - Applied ✅
PLUS 5% back in reward points
Sale price$135.15 USD Regular price$159.00 USD
Save 15%
SKU: GT86-DIFF
OEM Style or 20mm raised?:OEM Style (not raised)
In stock

What is a Backorder?

Q: What is backorder?

When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.

Q: Will items in my order that are in stock be shipped out first?

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
Fast Dispatch
Checking Dispatch Times... * We do aim to achieve this every day, but please note that this is not a guarantee and is subject to daily order volumes.
Free Shipping + Express Post options available Free USA wide shipping on orders over $230 * We offer FREE STANDARD SHIPPING* within the USA when you purchase $230 or more in a single order.
Store Pickup Pickup available at Albuquerque NM
Order and get reward points Earn 5% back in reward points, that is $6.75 worth!

The GKTECH solid aluminium diff bushings are a direct replacement of the standard items and ensure that movement of the diff is kept to a minimum within the subframe which is quite common under hard driving conditions.

In addition to limiting the movement of your rear diff our risers raise the diff within the subframe 20mm limiting the angle of your axles on a lowered vehicle. If your car isn't super low, the OEM style solid bush is suggested.

- CNC machined 6061-T6 aluminium and anodized black

OEM Style or 20mm raised version?
If your car is lowered, go with the 20mm raised version. There are no negatives and it fixes up bad axle angles which cause blown cv's.

NOTE: On SUPER low cars running the 20mm risers your axles may then come into contact with the rear upper camber arm and or subframe which must be notched accordingly, it's uncommon but not impossible. This is not an issue at all with the OEM style solid bushes.

The 20mm risers were also designed around the OEM diff/axle/tailshaft, if you have aftermarket axles/tailshaft then it may make contact with the heat shield, which is circumstantial and needs to be checked.

FAQs

What's the difference between your OEM style solid diff bushings and the "raised 20mm" version?
Solid is as the name suggests, solid. Where the risers come in to it is if you have lowered your car the axle angles get messed up. The OEM axles don't work well at high angles and as such can blow our CV joints. By raising your diff 20mm you are correcting the axle geometry by 20mm.

Why not go more than 20mm?
The diff physically can not sit any higher in the subframe. To go one step further you can however raise your subframe also.

What modifications are required, is this hard to fit?
No modifications are required, simply sit the front bush stiffners by hand into the diff, and then press the rear bushings into the subframe. Note on SUPER low cars with the raised 20mm version your axles may then come into contact with the rear upper camber arm and or subframe which must be notched accordingly. It's uncommon but not impossible.

Is there anything else needed for installation?
No, you can use your OEM nuts and bolts, in terms of the bushings they will arrive as shown in the product photo.

Can I install this myself? If so how long will installation take?
Yes, if the diff is out the job will take around 30 minutes to remove the OEM bushings and install the new bushings.

Do these cause much vibration/noise in the cabin?
Not really. Obviously, anything solid or more rigid is going to cause an increase in noise and vibration. However, I'd hardly say that it's noticeable. Chances are if you're installing these you've already got coilovers, your car is lowered, you've got an aftermarket exhaust etc.

Will this fit my car?
We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.

VEHICLE COMPATIBILITY

Scion

FR-S ZN6

Subaru

BRZ ZC6
BRZ ZD8

Toyota

GR86 ZN8
GT86 ZN6
