4130 high tensile steel tie rod spacer
4130 high tensile steel tie rod spacer
4130 high tensile steel tie rod spacer
4130 high tensile steel tie rod spacer

GKTECH

4130 high tensile steel tie rod spacer

Sale price$38.00 USD
SKU: TROD-EXTN
In stock
Quantity:

What is a Backorder?

Q: What is backorder?

When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.

Q: Will items in my order that are in stock be shipped out first?

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
Pickup available at Albuquerque NM Usually ready in 24 hours

4130 high tensile steel tie rod spacer

Albuquerque NM

Pickup available, usually ready in 24 hours

8524 Indian School Rd NE
Albuquerque NM 87112
United States

📦

Free Shipping on orders over $250

Checking Dispatch Times...
* We do aim to achieve this everyday but please note that this is not a gurantee and is subject to daily order volumes.

Order and get upto 190 reward points

Earn points by signing up for our rewards program

Product enquiry

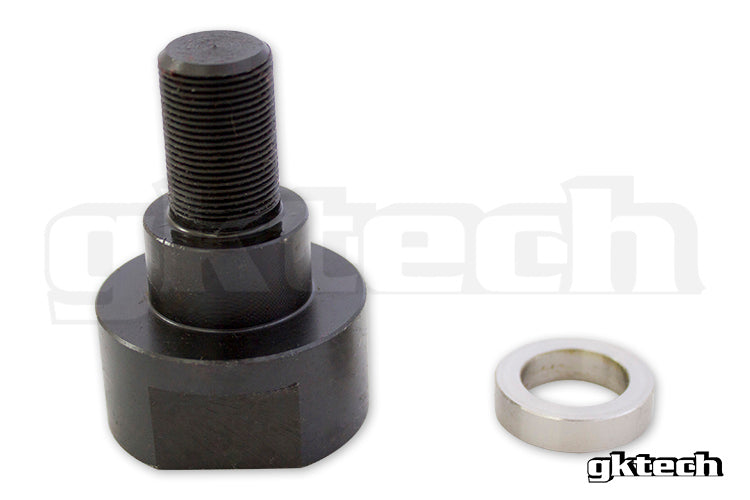

The GKTECH high tensile 4130 zinc coated tie rod spacer extenders screw on to the end of either standard or aftermarket tie rods and allow the tie rods to travel further into the steering rack which creates more steering lock. Great for drift or getting out of parking spots.

Can be used either with or without the extra washer (included), with the washer this kit offers a grand total of 3/4" (19mm) of rack travel and 12-15 degrees of extra lock without compromising on the amount of thread left in the steering rack.

- DIY installation (not as easy as the washer install but still not too hard)
- CNC machined high tensile zinc coated 4130 steel

FAQs

Do I need to buy 1 of these rack spacers or 2?
You only need to buy 1 as buying 2 offers no benefit to the improvement of the steering lock.

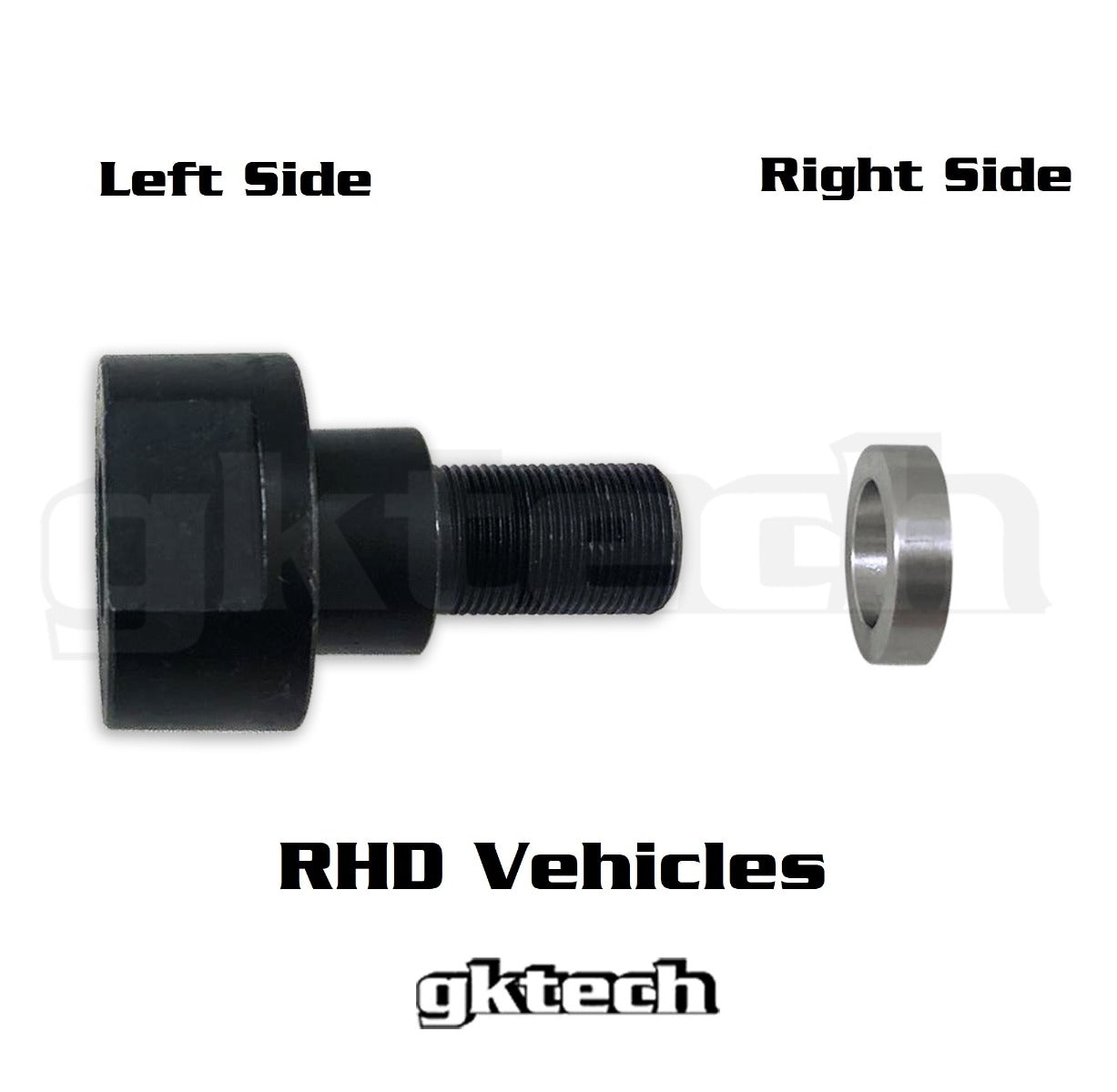

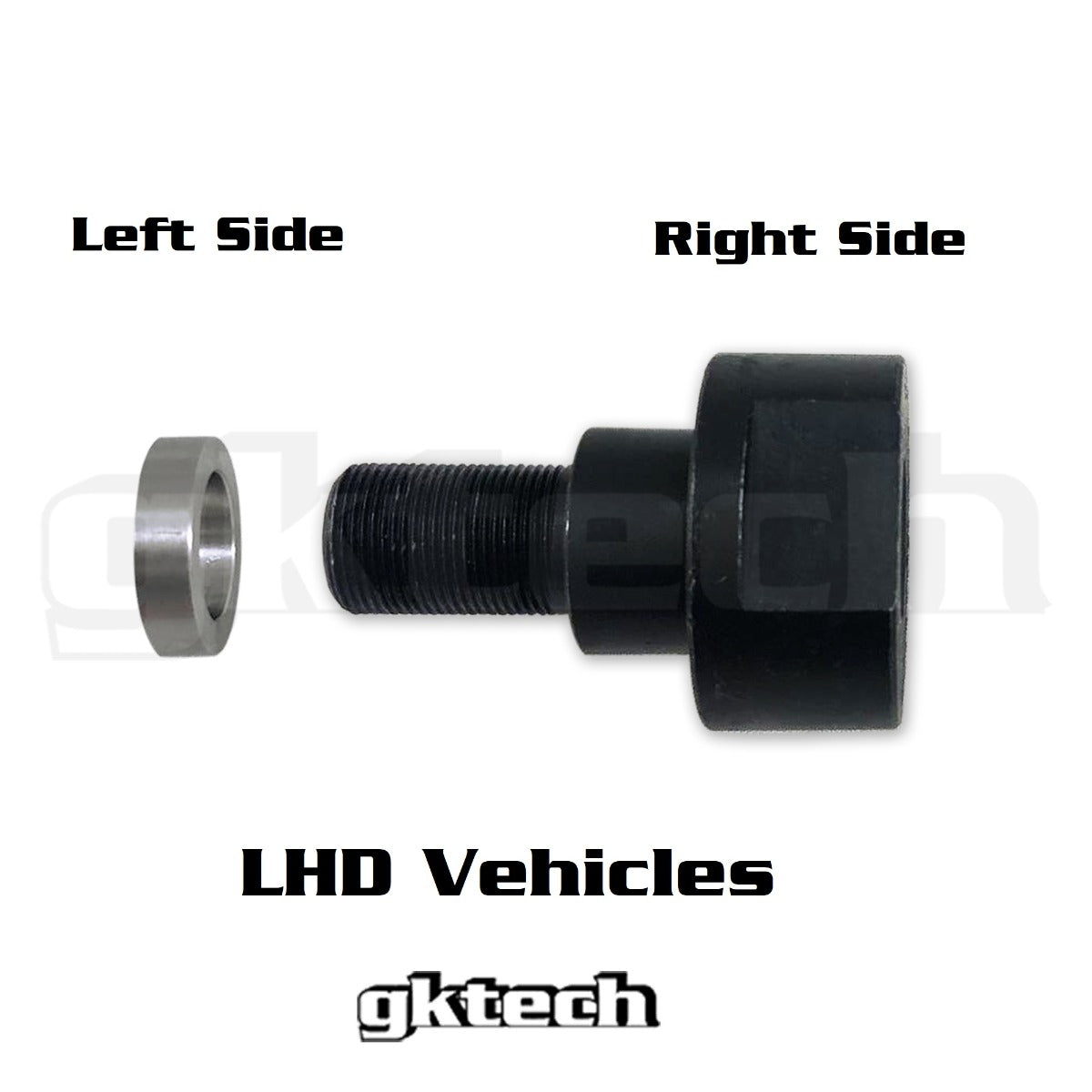

The way that these work is that they take advantage of extra travel available within the steering rack (which does have a limit). Hence the 1/2" (13mm) bolt on on the passenger side of the rack and the 1/4" (6mm) washer on the driver side of the rack. Adding an extra rack spacer won't give more lock.

In the event that your tie rod ends are too short then in that case using another bolt on rack spacer (on the driver side) would be okay.

How does this steering rack spacer work?
The steering rack spacer screws between the steering rack and your passenger side tie rod. It allows the steering rack to travel an extra 1/2" (13mm) while the washer which is to be installed on the drivers side allows for an additional 1/4" (6mm) of travel.

Giving a grand total of 3/4" (19mm) of additional steering rack travel = 12-15 degrees more lock.

I've installed the rack spacer and I've got a heap of toe in, what happened?

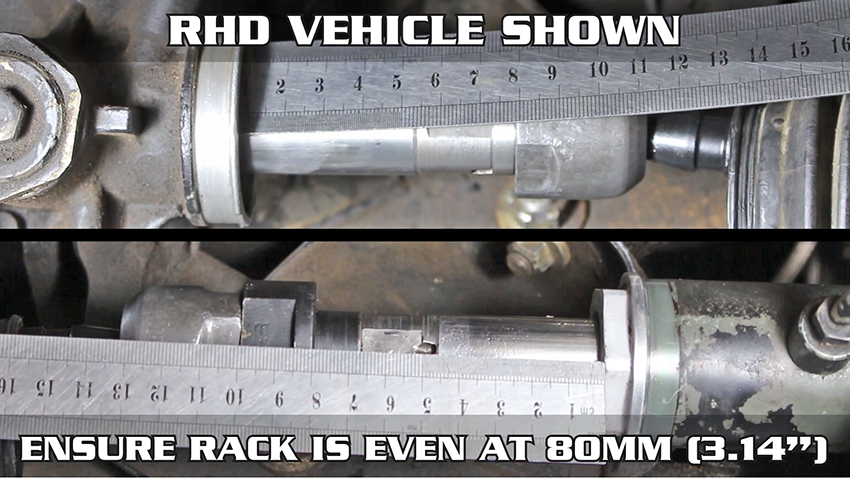

After you have centred your rack (this is CRUCIAL) you may need need to trim your tie rod ends down to counteract the length that you've just put into the length of the rack.

Whether you need to trim the tie rods down depends on your setup (Ie. if you've got longer LCA's or aftermarket knuckles you may not need to).

Do NOT trim too much off or else you'll need to get a new tie rod and only trim down once you've centered the rack. Note that the LH side has a larger spacer so it will need the most attention.

What's the difference between this screw on steering rack spacer and the lock washers that you sell?
The steering rack spacer gives in total an additional 3/4'' (19mm) of travel where as the lock washers only offer 1/2'' (12mm) of travel (1/4'' (6mm) each)

What is the thread pitch?
M16x1

VEHICLE COMPATIBILITY

Nissan

R32 SKYLINE GTR
R32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GT-T
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 240SX/SILVIA
Z32 300ZX
Z33 350Z
Z34 370Z

Infiniti

G35
