GKTECH
5x100 to 5x114.3 FR-S / GR86 / BRZ bolt on conversion spacer
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.5x100 to 5x114.3 FR-S / GR86 / BRZ bolt on conversion spacer
Extended Studs
Albuquerque NM
8524 Indian School Rd NE
Albuquerque NM 87112
United States
Free Shipping on orders over $250
Checking Dispatch Times...
Order and get upto 445 reward points
Earn points by signing up for our rewards program

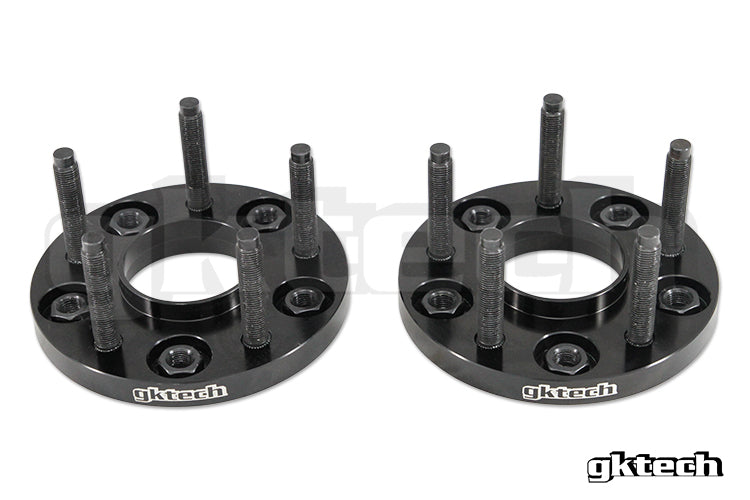

The GKTECH 5x100 to 5x114.3 wheel adapters allow you to fit 5x114.3 wheels on your FRS or BRZ.
Sold as a pair these wheel adapters bolt on to your standard hub just like a normal wheel spacer.
The wheel spacers are hub centric to suit FRS/BRZ 56.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength along with grade 10.9 studs, which you have the option of either standard length studs or extended wheel studs.
Our unique design uses an oval-shaped stud to prevent any chance of the stud spinning within the spacer and damaging the knurl when over tightened, a common occurrence with generic spacers found on the market.
- CNC machined aluminium T6-6061 construction
- Grade 10.9 studs
- Hub centric to the vehicle to suit 56.1mm
- M12 x 1.25 thread thread pitch

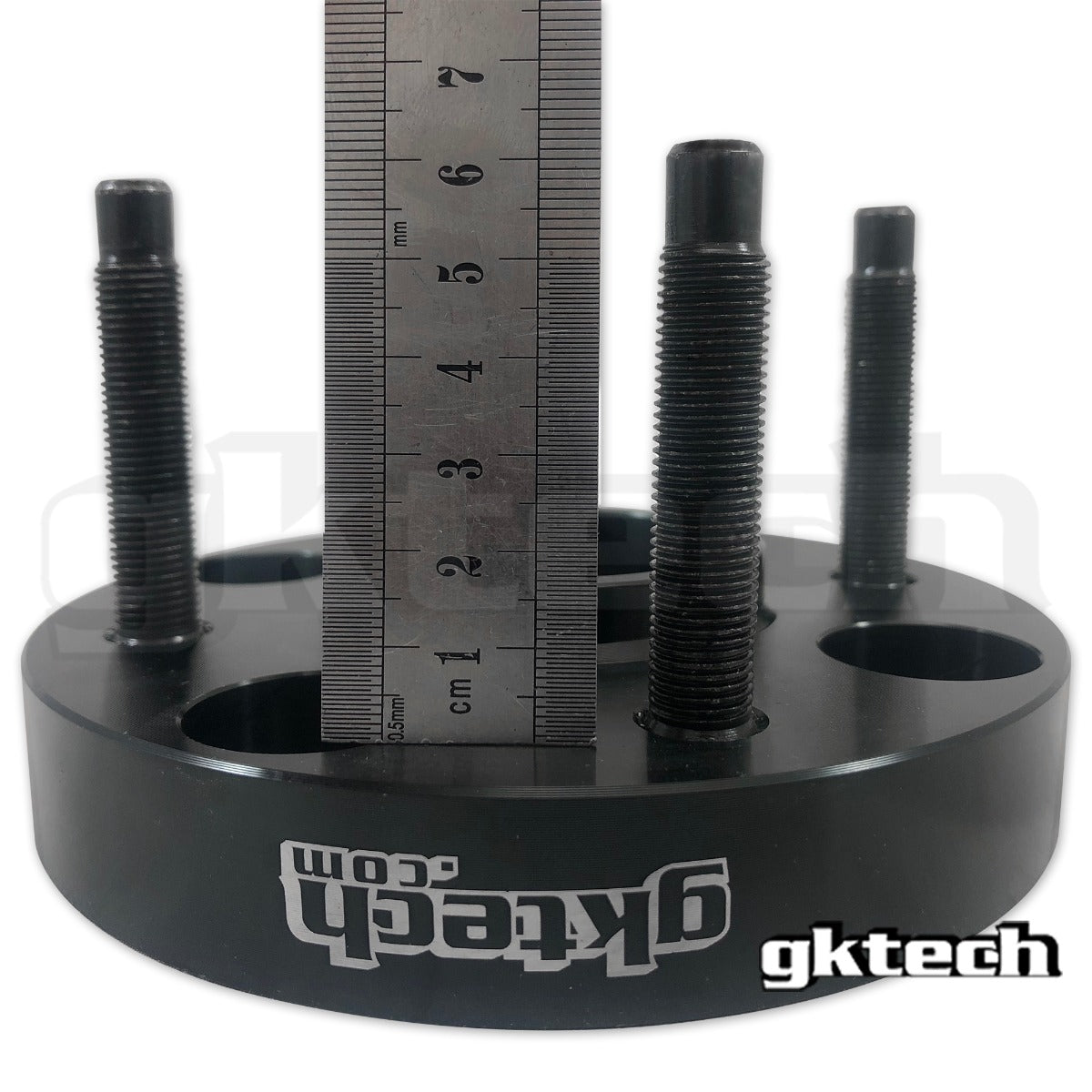

- Either 35mm or 60mm long studs
- Oval shaped studs to prevent stripping of the knurl
- 15mm thick wheel adapters
NOTE: Sold as a PAIR
NOTE: You may need hub centric rings that we have available to suit your aftermarket wheels etc
| Sizes (width) | PCD | Centre bore | Standard stud length | Extended stud length | Stud thread |
|---|---|---|---|---|---|
| 15mm | 5x100 | 56.1mm | 35mm | 60mm | M12 x 1.25 thread |
FAQs
What torque should the nuts be set to?As per the Toyota tech guide we recommend a torque setting of 120nm (88.5ft-lbs). Anything more than this will strip the stud and is DANGEROUS. The setting of 120nm (88.5ft-lbs) is as per Toyota's specifications.
What's involved in installing these adapters?
As the 5x100 and 5x114.3 PCD's don't overlap these are a very straightforward install. These are no more difficult to install than any other bolt on wheel spacer. Note that when running any 15mm bolt on wheel spacer you will need to trim down your wheel studs so they don't protrude past the spacers mounting surface.
Do you make different sized or PCD wheel spacers?
We only sell the items listed on our website. If it's not listed on our website then we don't make it and we can't help. Sorry.
Are these safe?
These are no different to any other wheel spacer. They are machined from T6-6061 aluminium and are hub centric with grade 10.9 studs. They're strong! That said, as with all wheel spacers or adapters they are not intended or legal for road use.
Do have carry spare studs?
We do, the spare studs can be seen here;
Extended Studs
Short Studs
VEHICLE COMPATIBILITY
Scion
FR-S ZN6Subaru
BRZ ZC6Toyota
GT86 ZN6WARNING: Cancer and Reproductive Harm. http://www.p65warnings.ca.gov
Customer Reviews
great quality have had a few sets and they always handle the abuse!

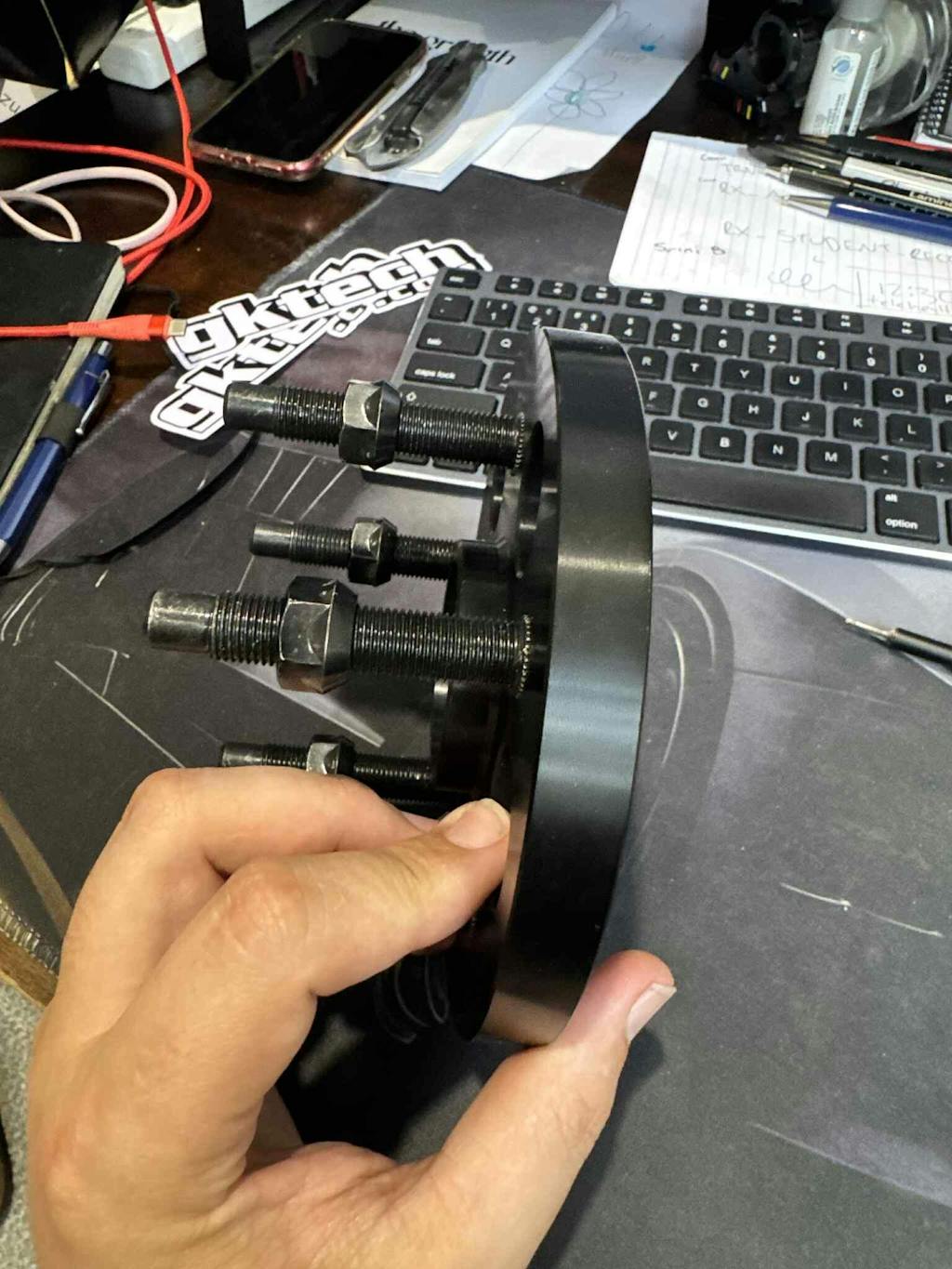

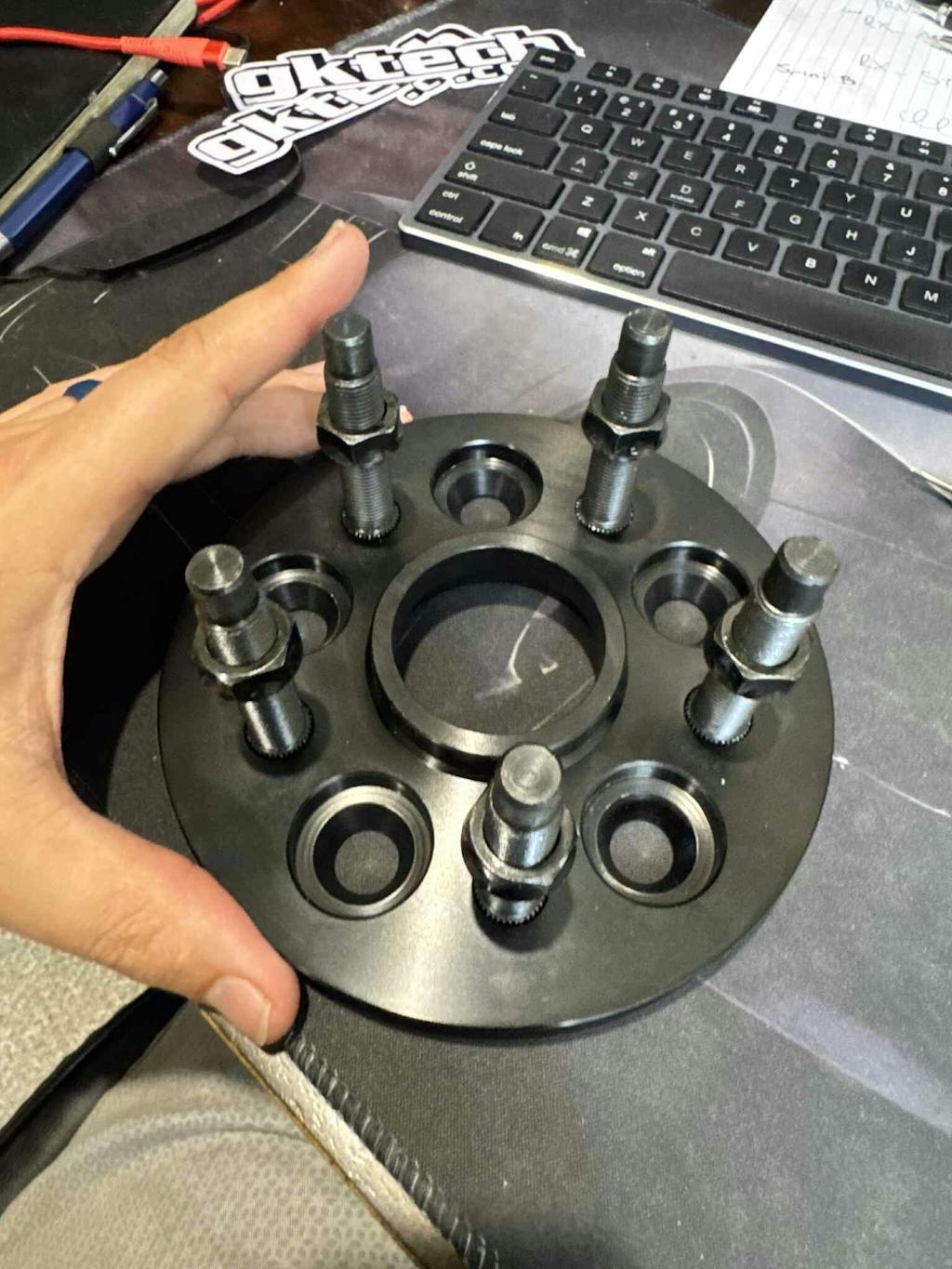

Bought the spacers and got them delivered pretty quickly and was happy about thay, everything fitted properly but the extended studs from the spacers sticks out past my rims now, I know they do say extended but just wondering what I can do without buying extended lugs or lugs with clear ends thanks. Other than that quality build
Hi Josh, thanks for the feedback. Outside of running extended lugs you can just trim the lug studs down to suit your OEM lug nuts.
Came on time and fits perfectly
Gktech never disappoint always on time and perfect fitment

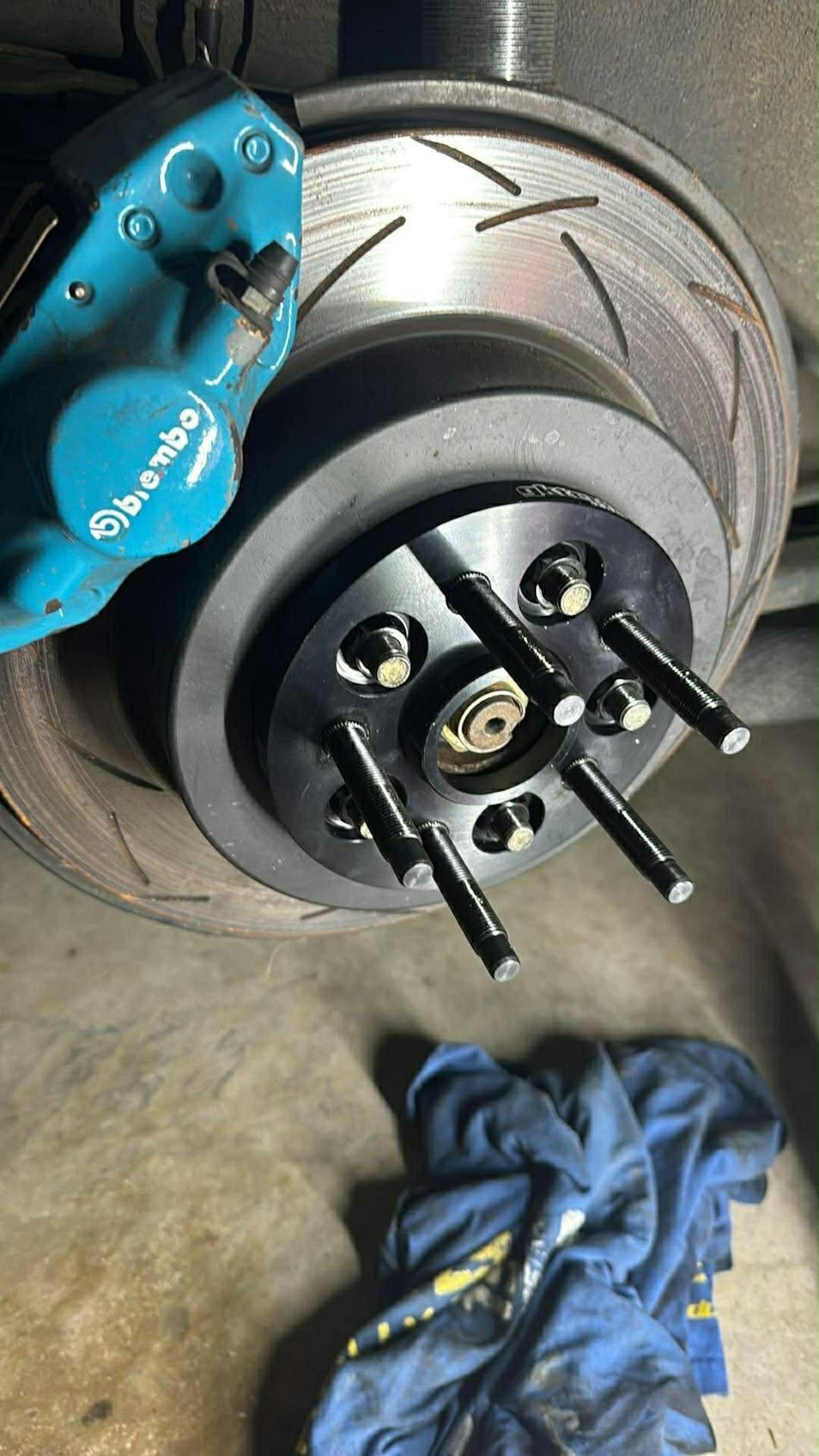

I put the wheel spacers on my 32. Perfect product and quick delivery. Thanks guys.
