V4 - S13 240sx/R32 Skyline Rear toe arms

Sale price$249.00 USD
SKU: s13x-toex
In stock
Quantity:

What is a Backorder?

Q: What is backorder?

When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.

Q: Will items in my order that are in stock be shipped out first?

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
Pickup available at Albuquerque NM Usually ready in 24 hours

V4 - S13 240sx/R32 Skyline Rear toe arms

Albuquerque NM

Pickup available, usually ready in 24 hours

8524 Indian School Rd NE
Albuquerque NM 87112
United States

📦

Free Shipping on orders over $250

Checking Dispatch Times...
* We do aim to achieve this everyday but please note that this is not a gurantee and is subject to daily order volumes.

Order and get upto 1245 reward points

Earn points by signing up for our rewards program

Product enquiry

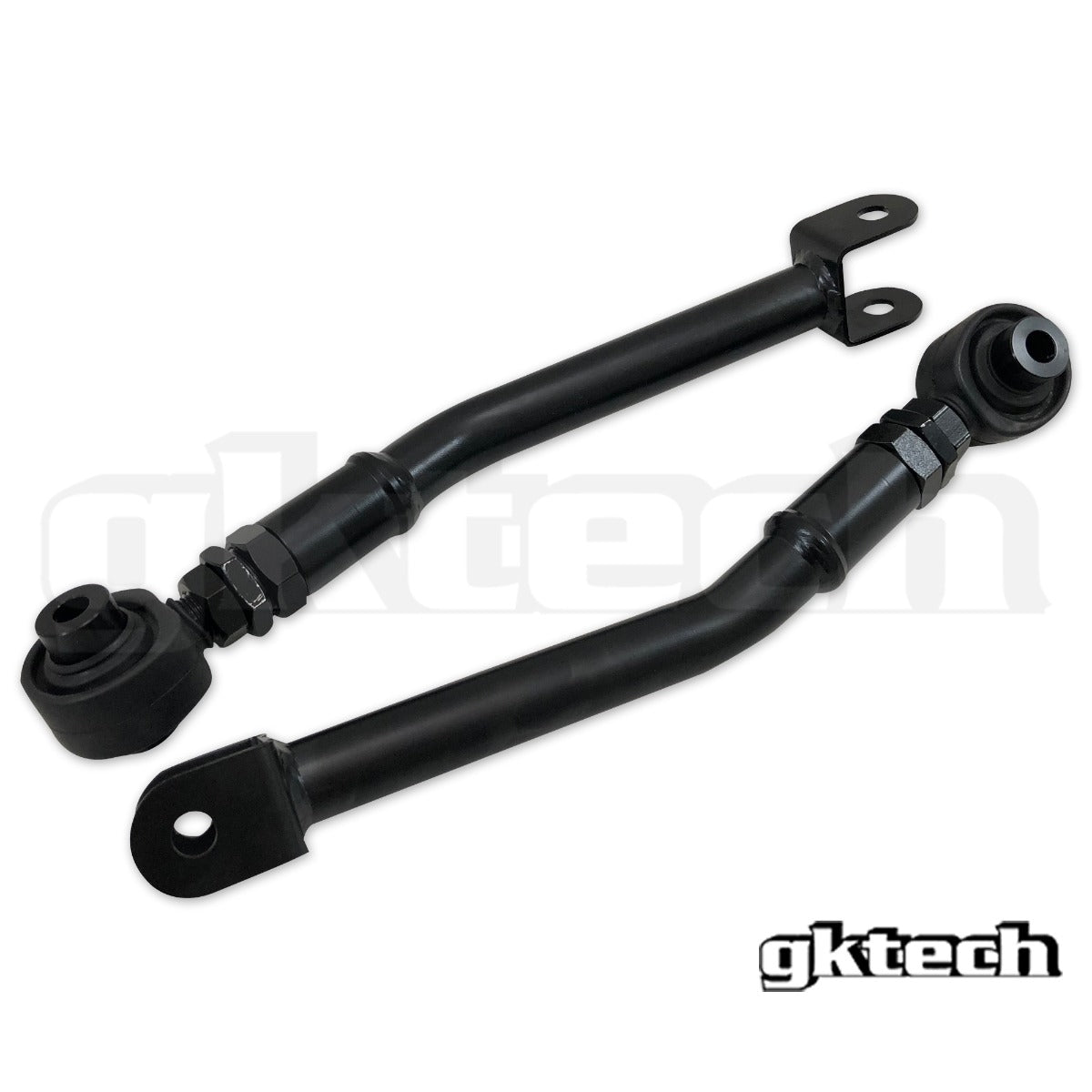

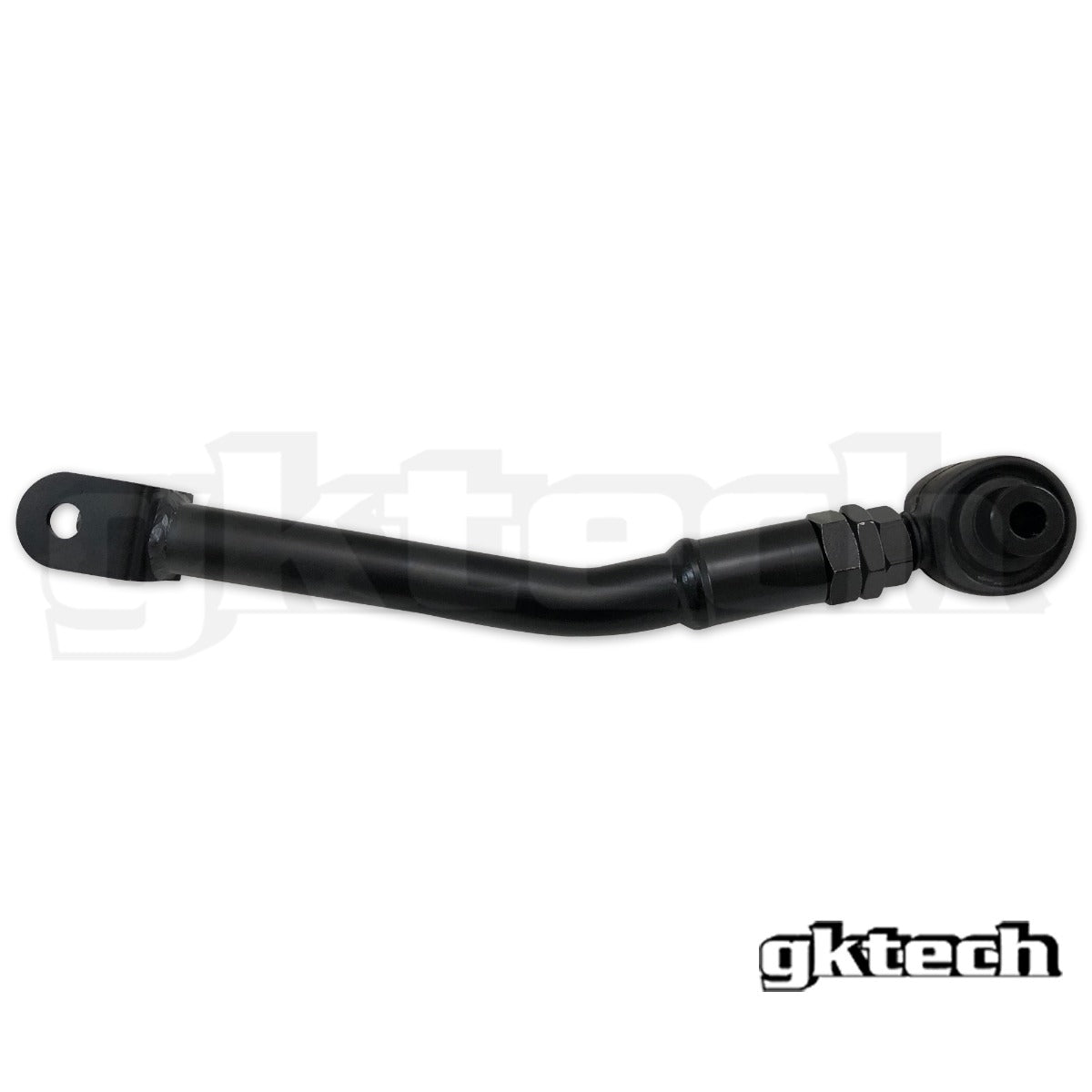

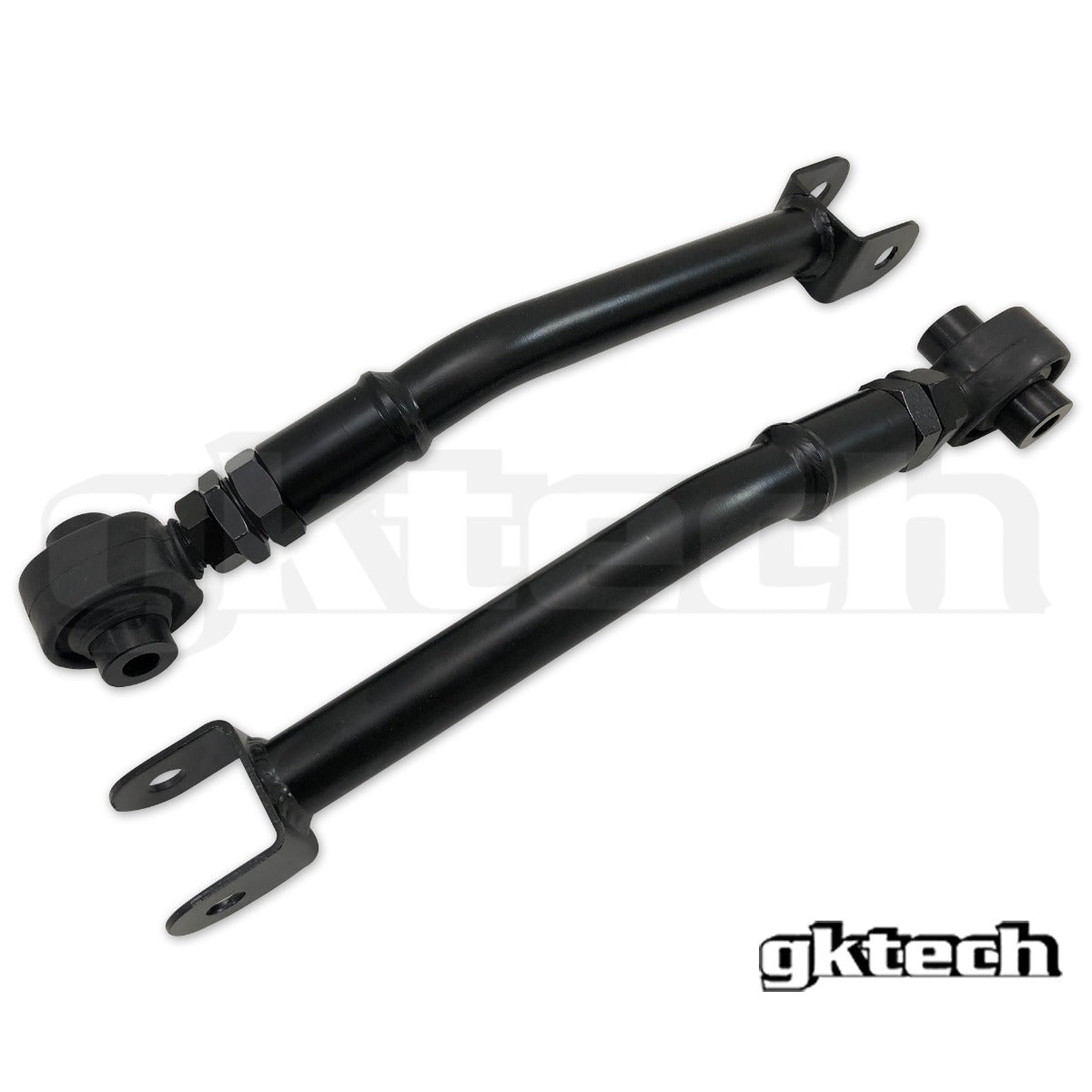

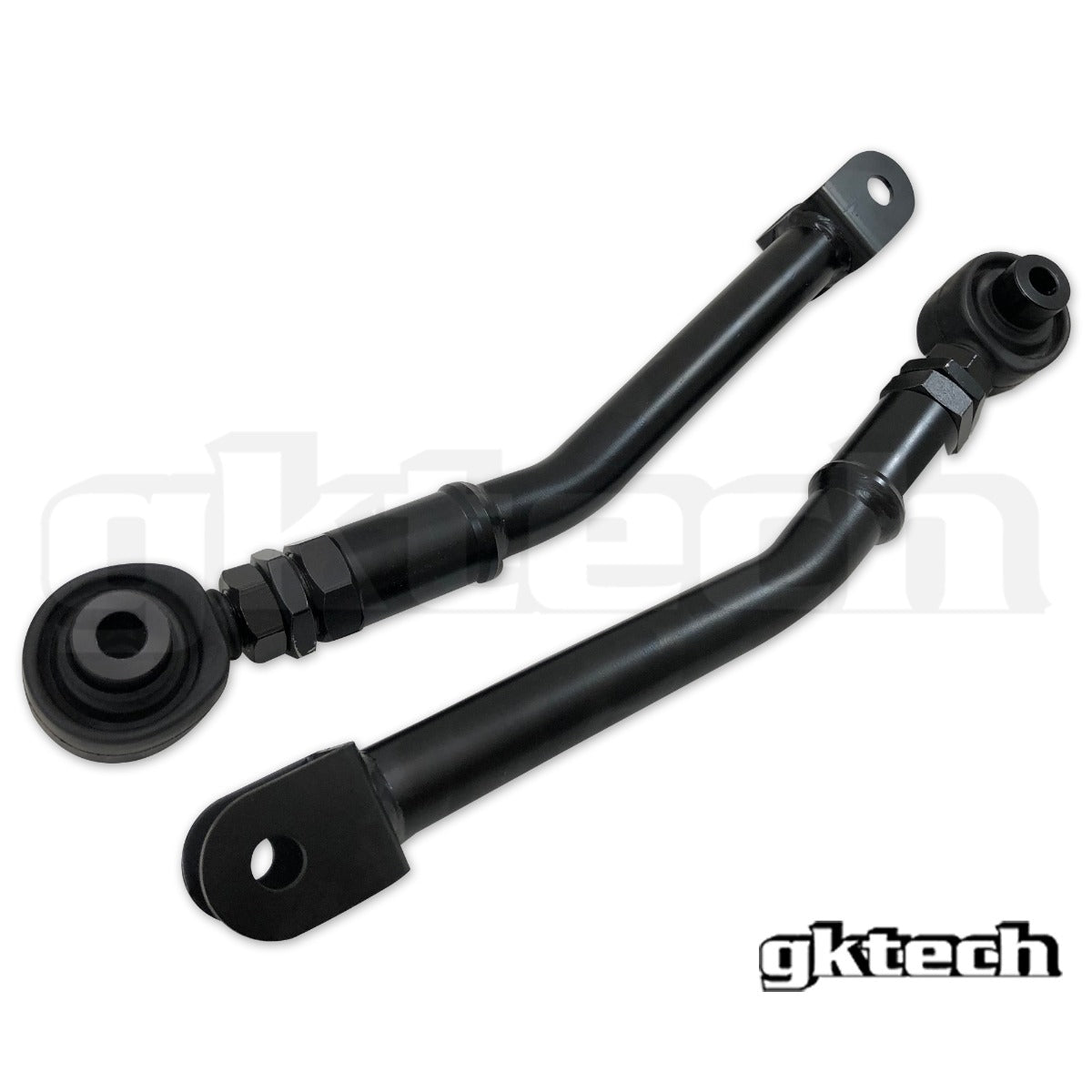

The new V4 GKTECH suspension arms are an even further improved version of our popular V3 Chromoly arms. The new V4's now have even more adjustment. Rear toe arms give you the ability to adjust and tune your vehicle's rear toe. The lengths on these rear toe arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved.

- V4 arms feature high quality 5/8" Teflon lined pillow ball rod ends which eliminate the flex found in factory rubber bushing offering a more direct and predictable feel.
- V4 arms are manufactured from chromoly 28mm OD (3mm wall) tube with billet CNC machined ends with recessed ends for additional strength.
- CAD designed, FEA tested, CNC machined ends, CNC mandrel bent arms (toe arms, camber and rear LCA's), CNC tube notched (camber and LCA's) and TIG welded.
- 20 degree bend in the end of the arm to clear chassis rails on lowered vehicles

NOTE: Will NOT suit cars with a HICAS subframe.
NOTE #2: if you require S14 240sx, S15 Silvia or R33 Skyline rear toe arms please refer to our other listing to suit.

FAQs

What is the difference between the S13 240sx toe arms and the S14/S15 version?
The S14/S15/R33/R34 version is to suit a 50mm width subframe, where as the S13 240sx/R32 version is to suit a 40mm width subframe. Besides that they're the same. If you're running an S14/S15 subframe in your S13 240sx you will need to order S14/S15 toe arms.

Will these fit my car?
We can only confirm fitment for the vehicles listed above under "confirmed fitment".

How long is the warranty on these arms?
All GKTECH suspension arms come with a lifetime warranty against manufacturing defects.

The Teflon lined heim joints come with a 1 year replacement warranty.

We stock spare bearings so even after the 12 months is up we can still help with replacements, worse case scenario they're a 5/8" heim joint and are readily available through your local autoshop.

Are these suspension arms legal for use on street cars?
We do recommend that you contact your local RTA for clarification/confirmation. Whether you use a suspension arm with a heim joint on public roads is at your discretion.

Are there any special tools required?
No, a spanner set will do the job which we do sell separately here - open ended wrenches

Do you carry spare parts for this product?
Yes we carry the following spare parts for this product, PCML12TES - https://us.gktech.com/replacement-pcml12tes-heim

VEHICLE COMPATIBILITY

Nissan 300ZX (non-hicas only)

Nissan

R32 SKYLINE GTS-T
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
Z32 300ZX

USER GUIDE(S)

Install Videos

Engineering Certificates

Download S13X-S145-TOEX V4 Cert
Warning Icon

WARNING: Cancer and Reproductive Harm. http://www.p65warnings.ca.gov

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
I
Ian Laird
Adjustable Rear Toe Arms

Fast delivery, easy as to install and combined with the Gktech rear knuckle bushes sorted out my R32 rear end. Thanks!!!

M
Matthew North
Gk Great Kit

Great products, great customer service helping me figure out the parts I need for my build. Stress free . Thanks a bunch

S
Seth Banfield
S13 suspension

Haven’t installed them yet but product looks mint

K
Kerry S
GREAT ARMS

So easy to Install i bought these from Conceptparts in NZ to replace my cusco toe arms in my S13 that were worn out and couldn't find replacement rod ends these are thicker and much easier to install and adjust and best thing is the GKTECH rod ends are replaceable

J
Josh Bender
Work great

Arms worked exactly like they should and seem to be quality parts
