GKTECH

240sx/Skyline HICAS delete combo

From $308.00 USD
SKU: SRCHDC

What is a Backorder?

Q: What is backorder?

When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.

Q: Will items in my order that are in stock be shipped out first?

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
Pickup available at Albuquerque NM Usually ready in 24 hours

240sx/Skyline HICAS delete combo

Albuquerque NM

Pickup available, usually ready in 24 hours

8524 Indian School Rd NE
Albuquerque NM 87112
United States

📦

Free Shipping on orders over $250

Checking Dispatch Times...
* We do aim to achieve this everyday but please note that this is not a gurantee and is subject to daily order volumes.

Order and get upto 2185 reward points

Earn points by signing up for our rewards program

Product enquiry

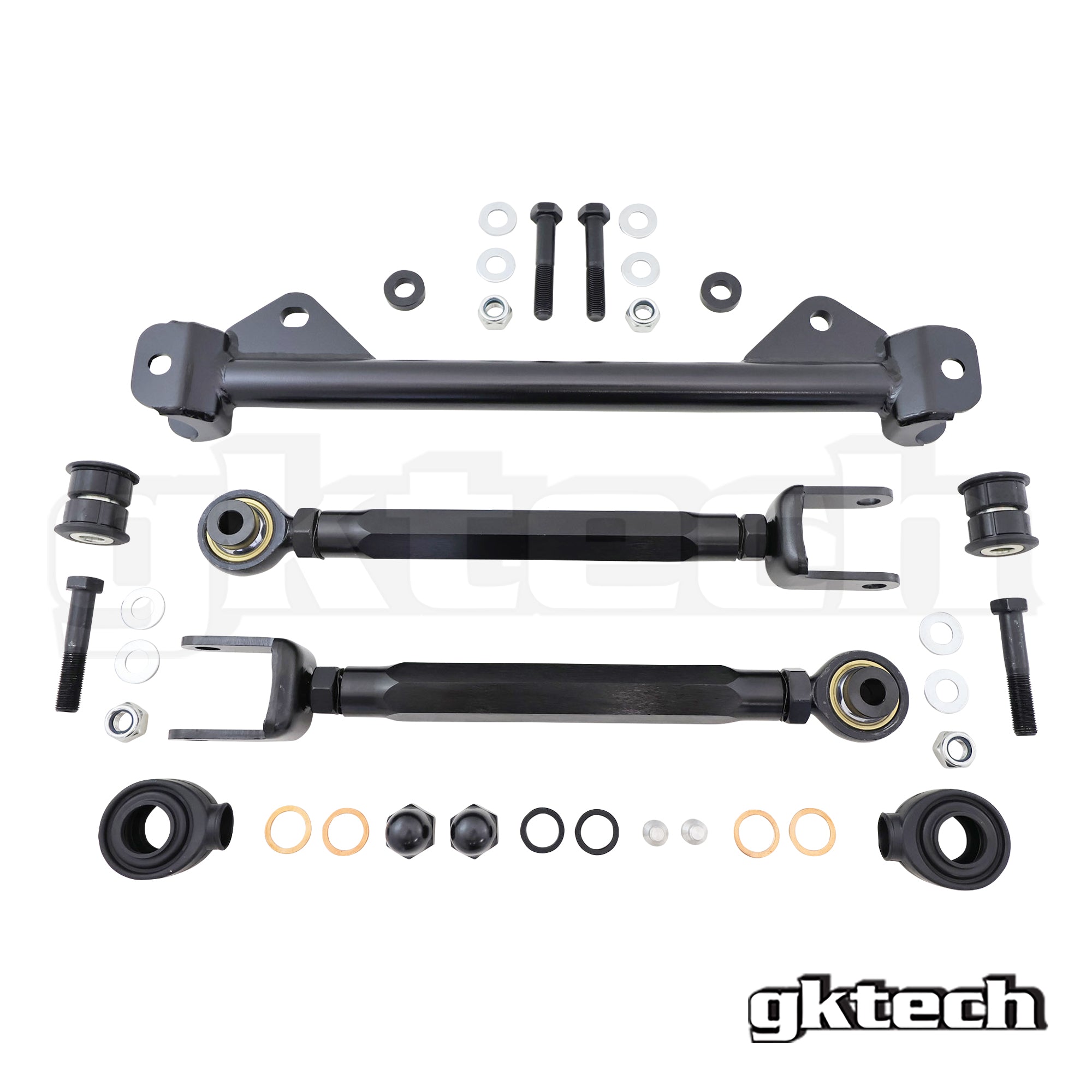

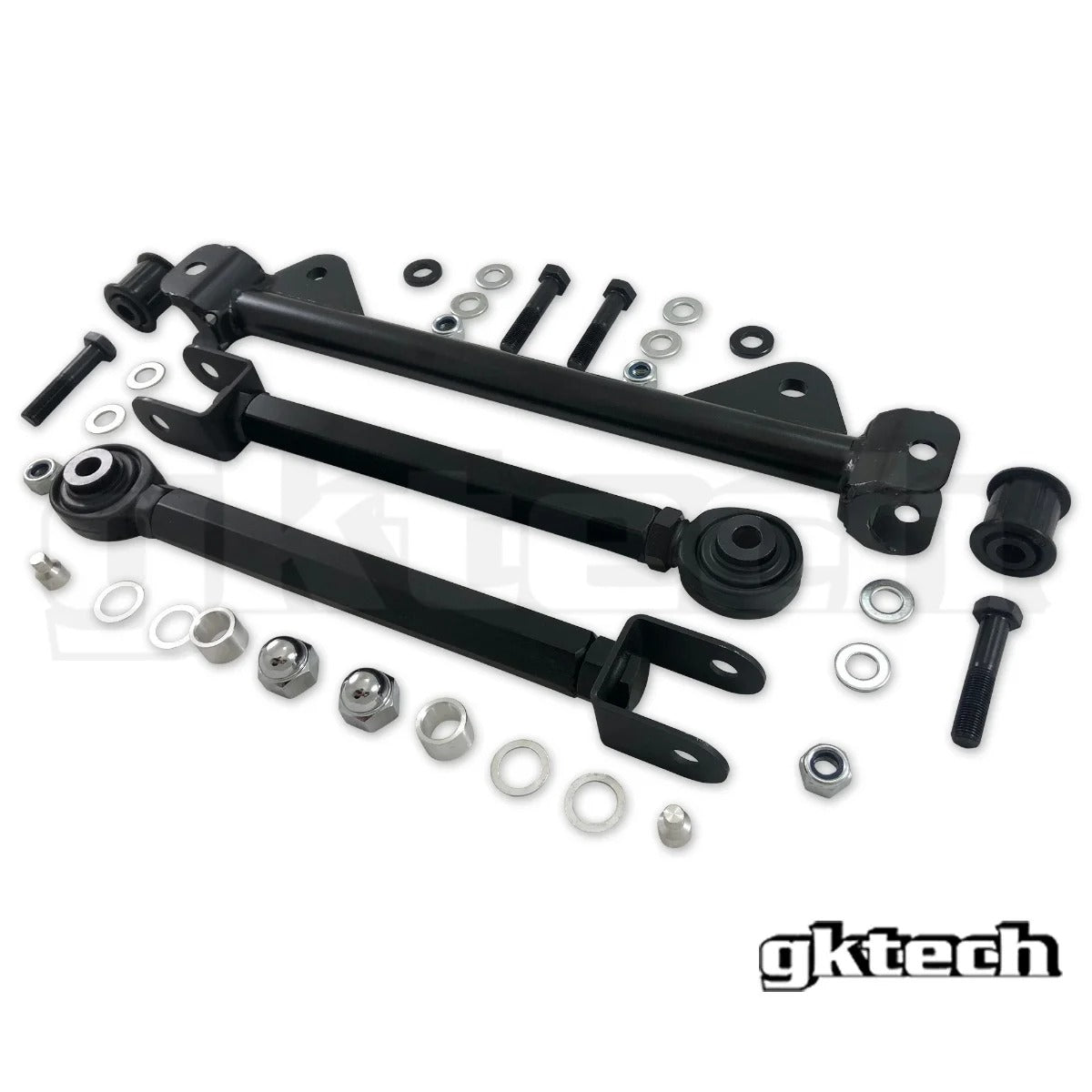

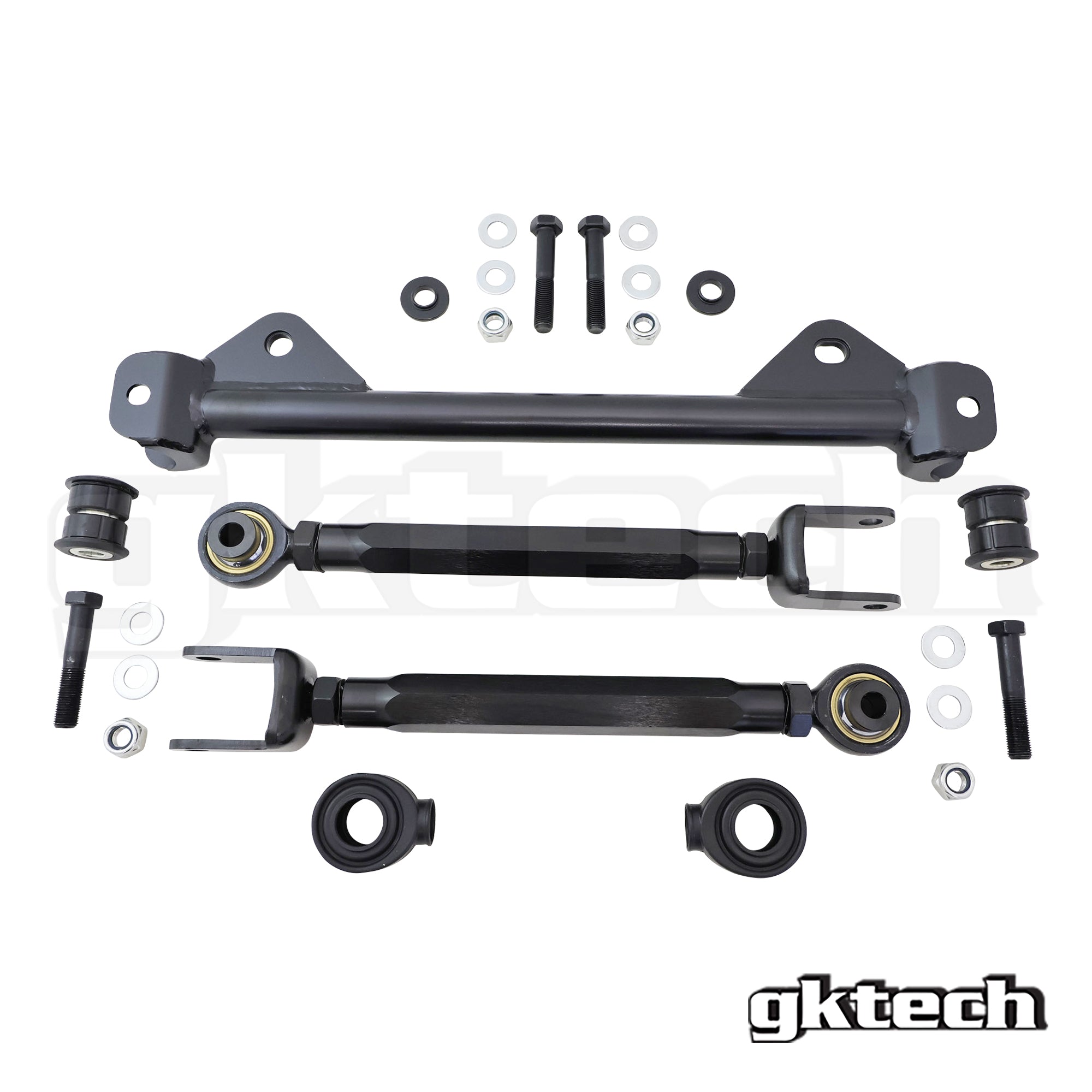

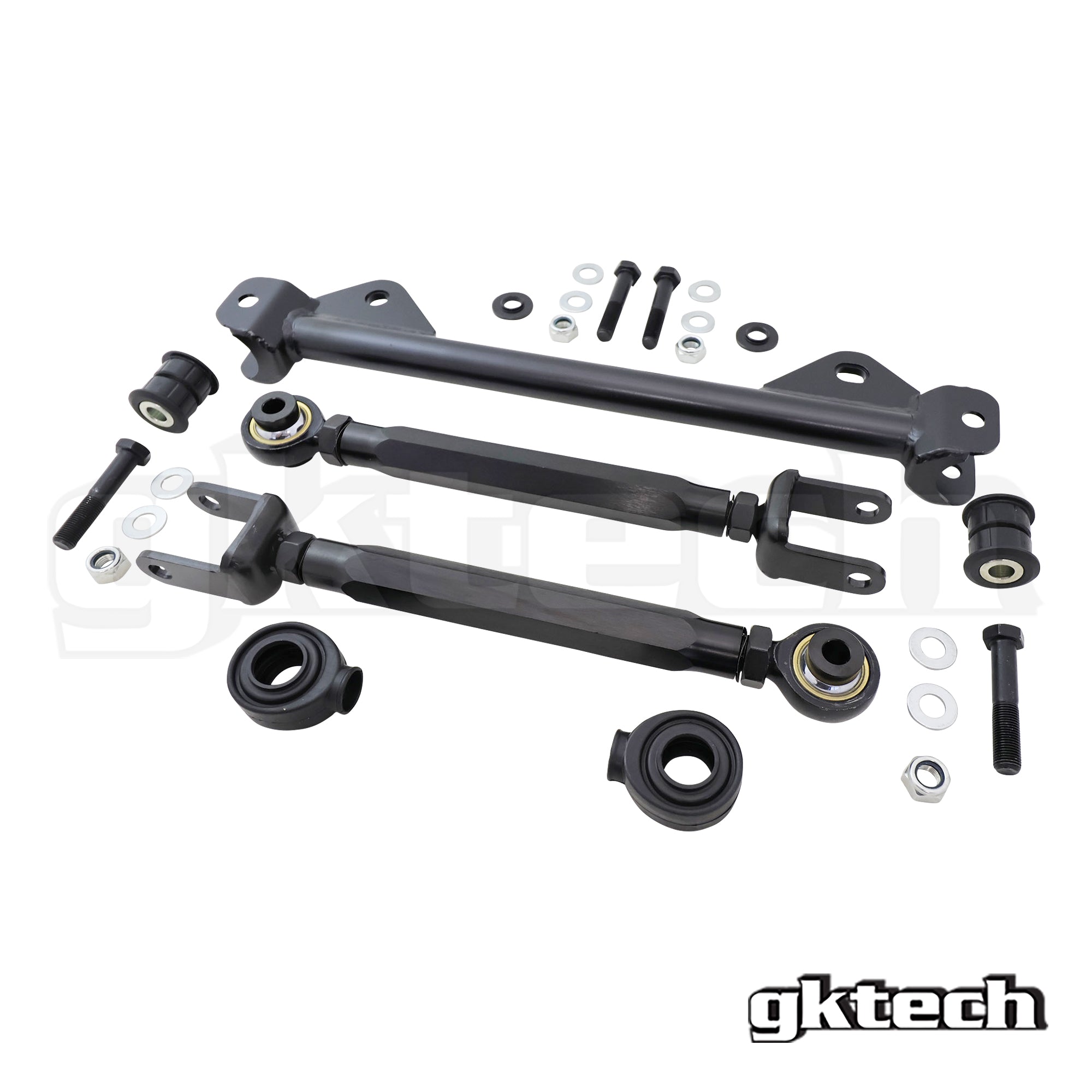

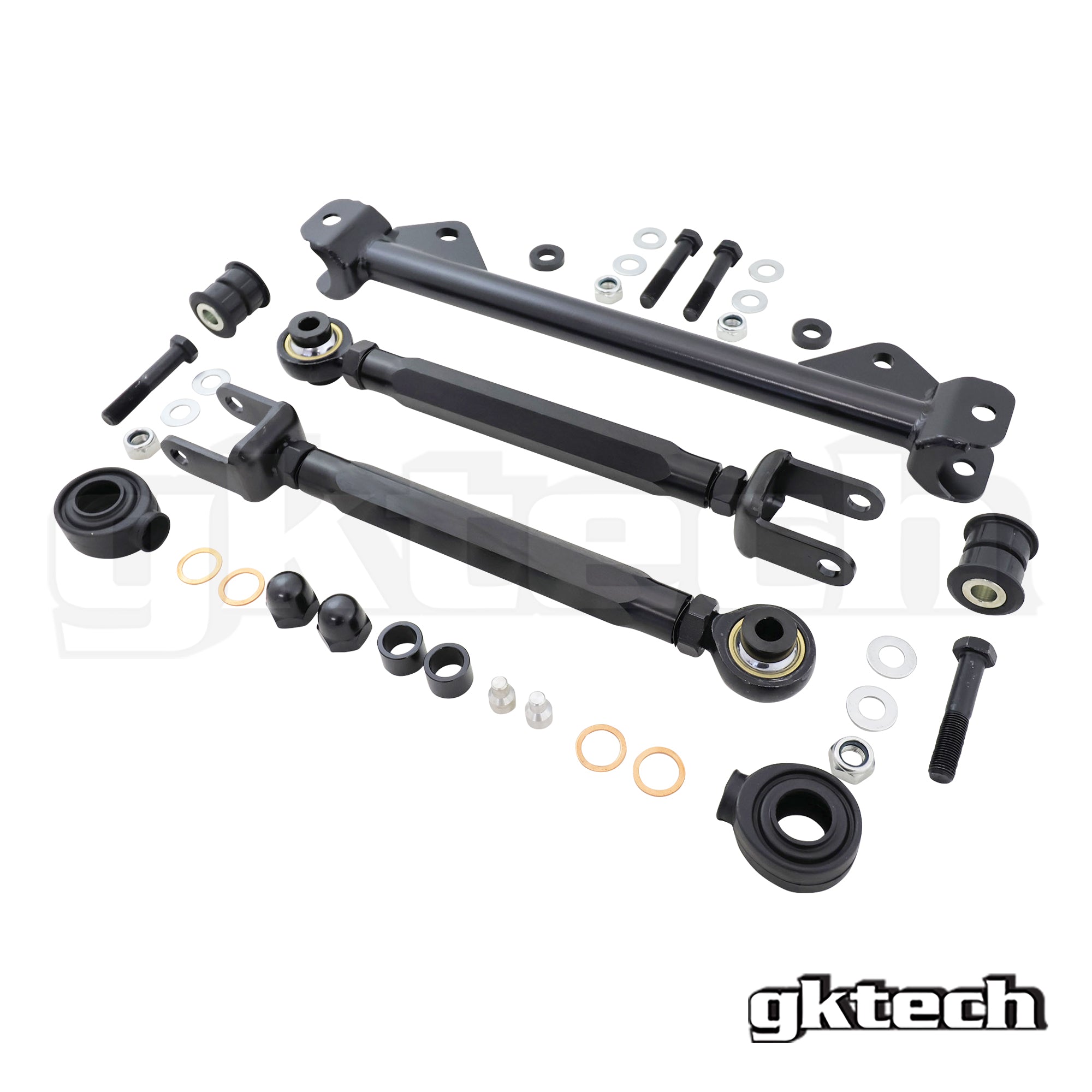

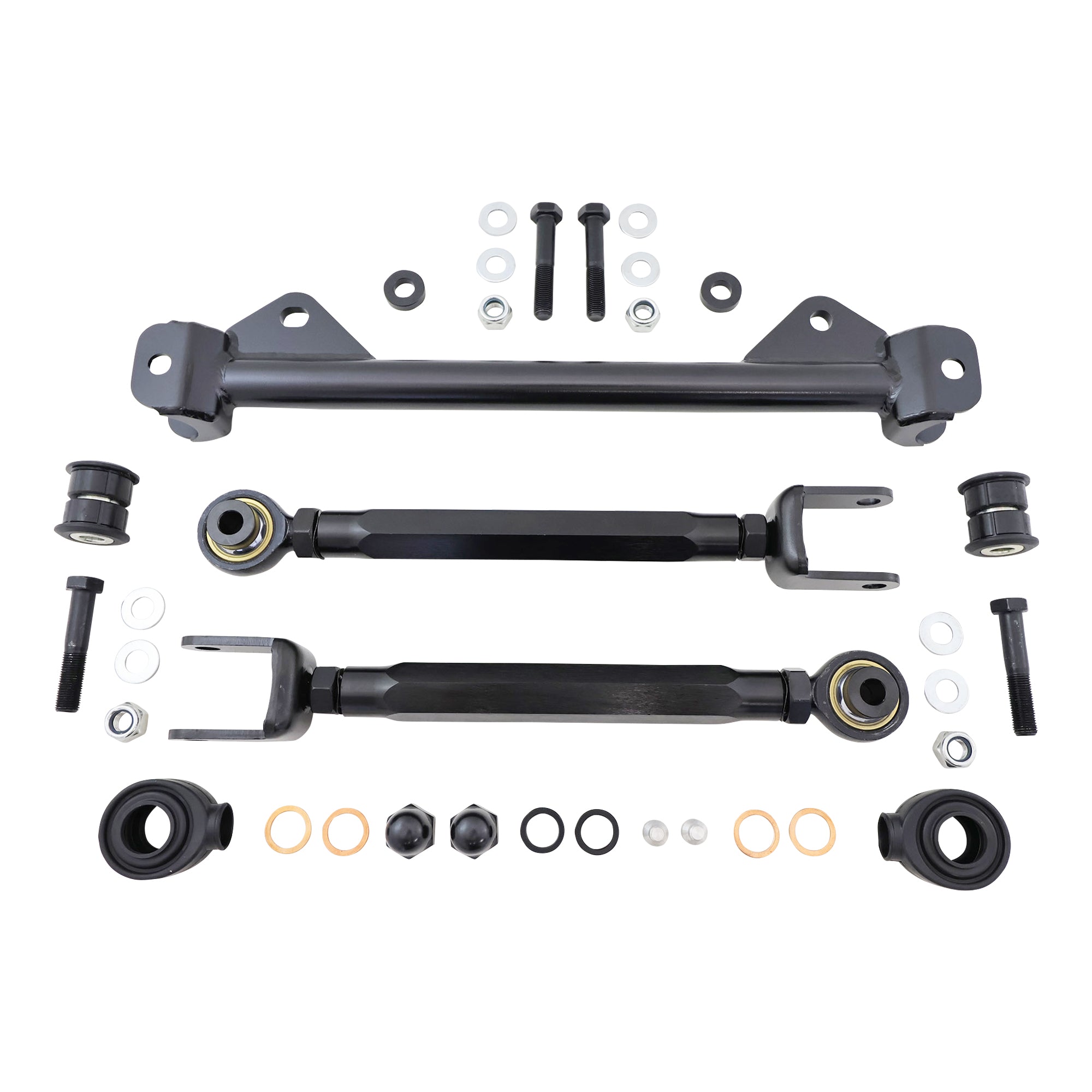

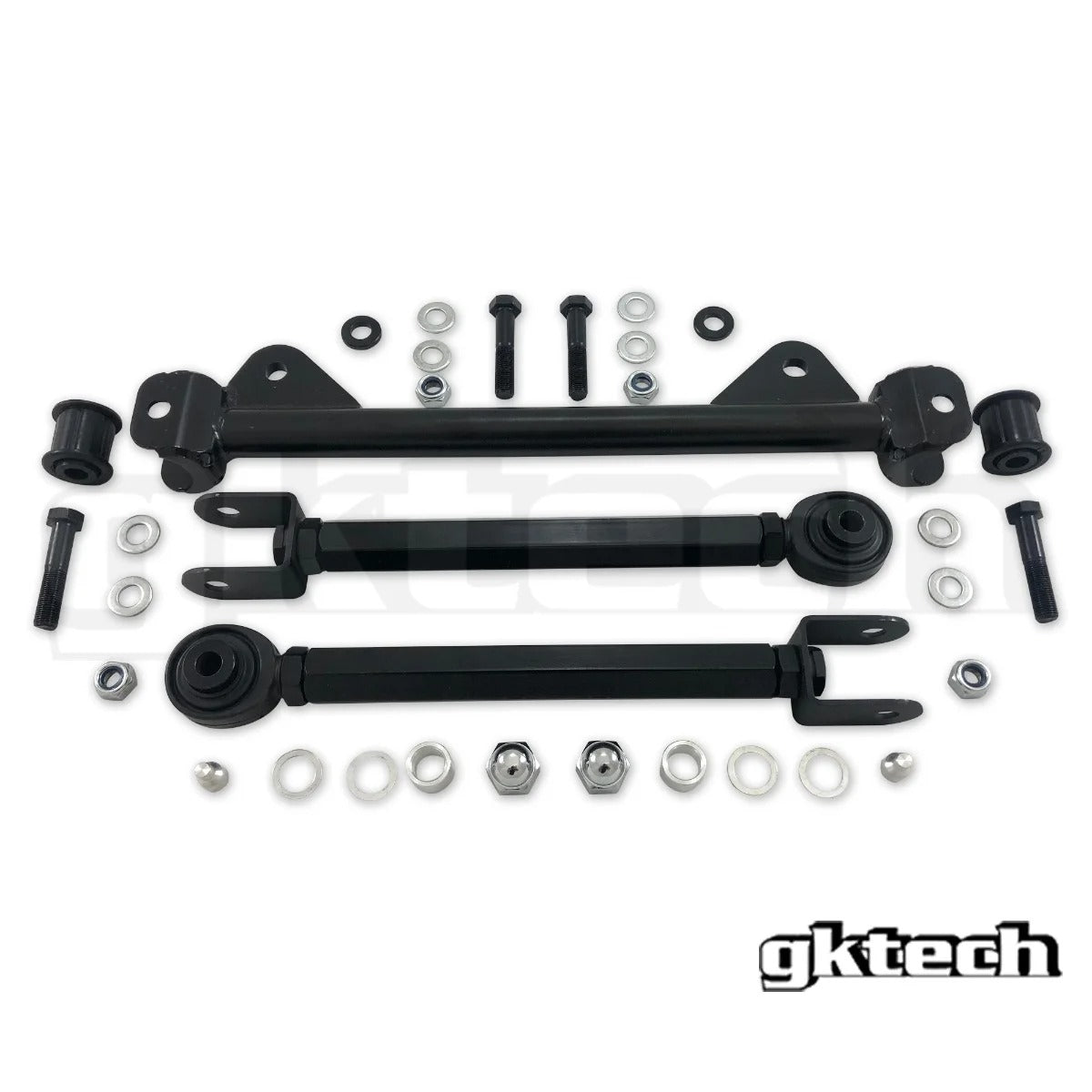

The GKTech V3 chromoly rear HICAS delete bar with toe arm mounts replaces your stock HICAS steering unit and we are now offering a combo option.

This combo gives you the ability to adjust and tune your vehicle's rear toe. The lengths on these rear toe arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved.

Essential for Motorsport or as an option to fix the broken expensive OE Nissan part.

This combo does have some options which include;

Straight toe arms or bent (high clearance) toe arms?
The straight toe arms are made from 7075 Aluminium as is best suited for a car that is not super low as the S/R chassis rear subframe mounting stud can make contact with the toe arms on lowered cars and also hexagonal shape all the way through for ease of adjustment.

The bent (high clearance) toe arms are made from Chromoly steel and offer a 20degree bend to suit people with low to super low cars as they offer clearance for the S/R chassis rear subframe mounting stud, which is critical on lowered cars.

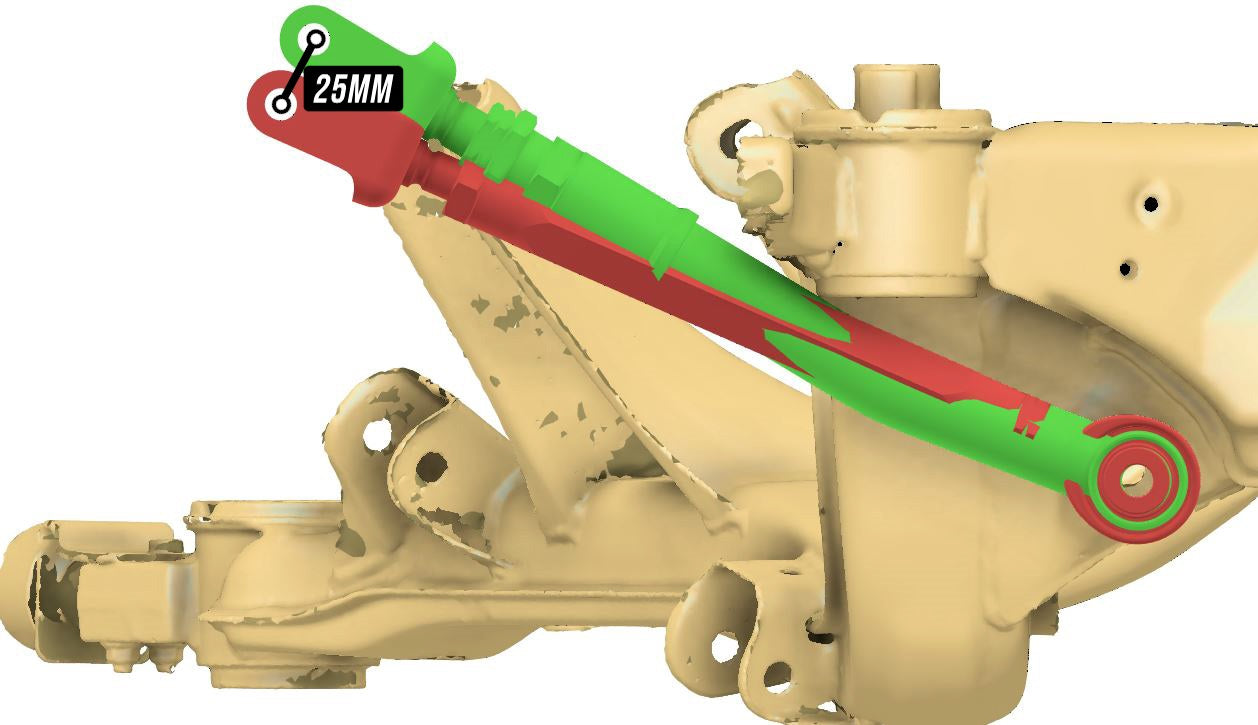

Check out the comparison, in the product photos above showing a 25mm clearance difference!

Note - The Gktech hicas lock bar only requires the S13/R32 toe arms which are 40mm wide, hence why that is the only toe arm listed, this means it will still work on any chassis you are fitted the kit to in general.

Rear knuckle bushes?

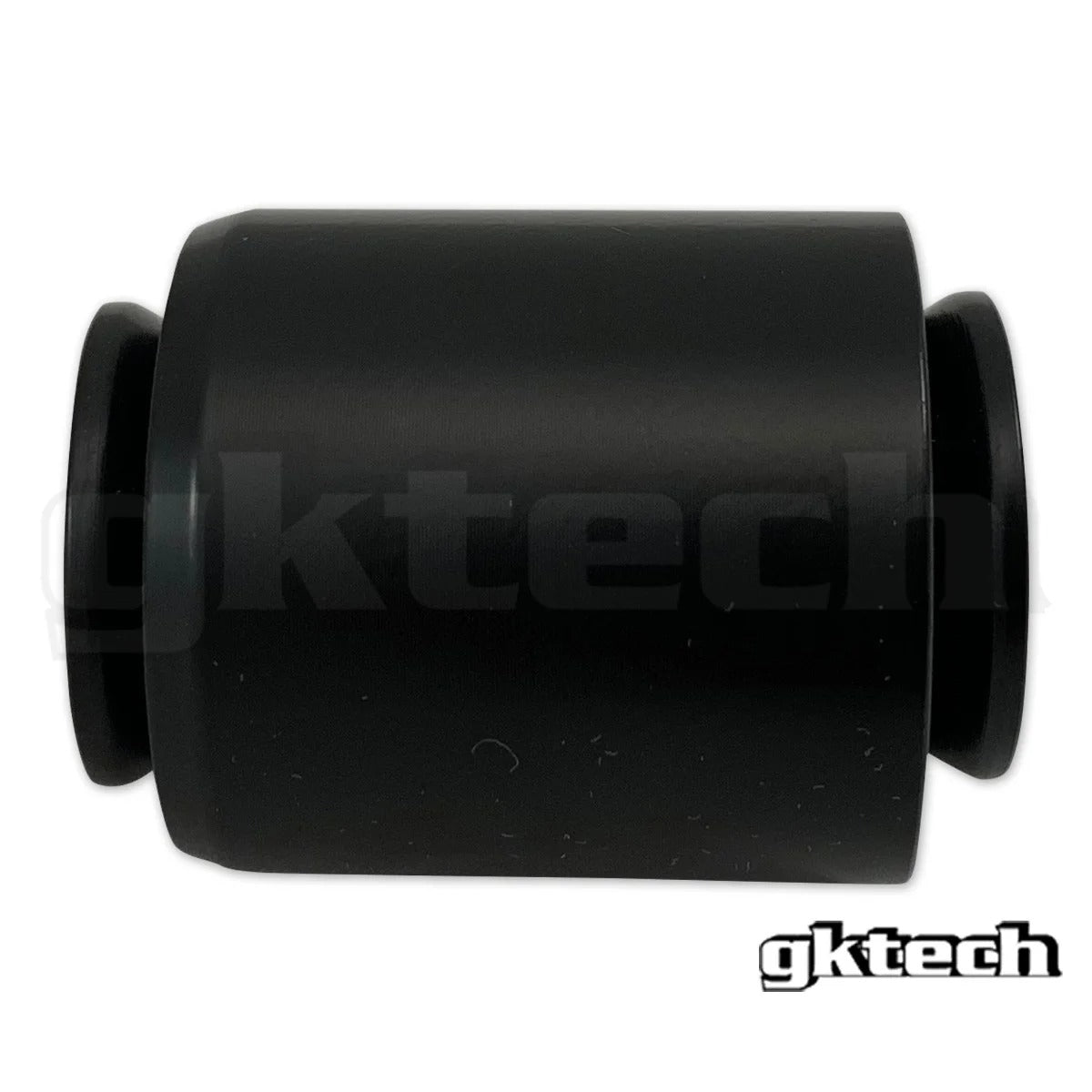

The polyurethane bushings are a direct replacement of the OEM bushing and has a very similar feel to the OEM bushing.

The spherical bearing is high misalingment and offers a more direct and predictable feel. There are two sizes to choose from so we suggest measuring the I.D of your knuckle before purchasing.

Note - Almost all Nissan rear knuckles are 30mm but we do recommend measuring before purchasing. The GTR/Z32 typically use 30.5mm but we have seen mixed results.

- Feature high quality 5/8" Teflon lined pillow ball rod ends which eliminate the flex found in factory rubber bushing offering a more direct and predictable feel.
- Billet CNC machined ends with recessed ends for additional strength.

FAQs

Where do the small black inserts go?
They are to be fitted to the back of the lock bar to space it off the subframe.

Will this fit my car?
We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.

Do you make these to suit other cars?
We only sell the part listed on our website. If it's not listed on our website, then we don't sell it. Sorry.

What's the advantage of using the GKTech Hicas delete combo?
The HICAS system is meant to help with handling however given that the technology is 20 or so years old, it's certainly not great and is hated by most. Chances are if you have felt HICAS work while driving with a bit of excitement, you want to remove it ASAP!

Removing the HICAS steering rack gives you more predictability of the rear of your vehicle. A must if you plan on drifting your car or taking it to the track.

What modifications are required, is this hard to fit?
No modifications are required, simply just remove your OEM Hicas unit, lines and OEM balljoint on your rear knuckle and refit.

Is there anything else needed for installation?
No, you will need an alignemnt after that has been done, but in terms of the kit it will arrive as shown in the product photo.

Can I install this myself? If so how long will installation take?
Yes, provided you have general mechanical knowledge as this is relitively straightforward. Installation time should be around 1 hour. However, being a suspension component we recommend only a trained professional to install this product.

Will my HICAS light stay on if I install this HICAS lock bar?
Yes, the HICAS light on your dash will stay on if the ECU thinks that it’s not working correctly. This can easily be resolved by removing the bulb for the HICAS warning light behind the dash.



How do I know if my car has HICAS or not?
HICAS equipped cars have a power steering reservoir level sensor built into the cap and two wires and a float inside the reservoir. If you lift off the power steering cap with those wires the HICAS light will turn on when you start the car.

Looking under the rear of the car you will also find hydraulic hoses and another steering rack device hooked to the differential and the rear suspension to steer the rear wheels. When the key is turned on and motor not started the warning lights come on (HICAS) light shows up then.

Will I have to get a wheel alignment after installing these?
Even if you have matched the the kit to OEM. We still do recommend a wheel alignment after any suspension changes.

Are these suspension arms legal for use on street cars?
Our understanding is that any suspension arm with a heim joint is not legal for street use in Australia. However, we do recommend that you contact your local RTA for clarification/confirmation. Whether you use a suspension arm with a heim joint on public roads is at your discretion.

How long is the warranty on these arms?
All GKTech suspension arms come with a lifetime warranty against manufacturing defects.

The Teflon lined heim joints come with a 1 year replacement warranty. We stock spare bearings so even after the 12 months is up we can still help with replacements.

Spare heim joints can be seen here: Replacement PCML12TE

Any local bearing supplier should stock these bearings, we say this as we use common size bearings in all of our products.

The common size bearing part number for this product is: PCML12TE

Are there any special tools required?
No, a spanner set will do the job which we do sell separately here - Double open ended wrenches

VEHICLE COMPATIBILITY

NOTE:
Nissan Skyline R33 GTR (Non-Finned Rear diff cover)

Nissan

CEFIRO A31
R32 SKYLINE GTR
R32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GT-T
R34 SKYLINE GTR
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 SILVIA
Warning Icon

WARNING: Cancer and Reproductive Harm. http://www.p65warnings.ca.gov

Customer Reviews

Based on 58 reviews
97%
(56)
3%
(2)
0%
(0)
0%
(0)
0%
(0)
E
Eric Baker

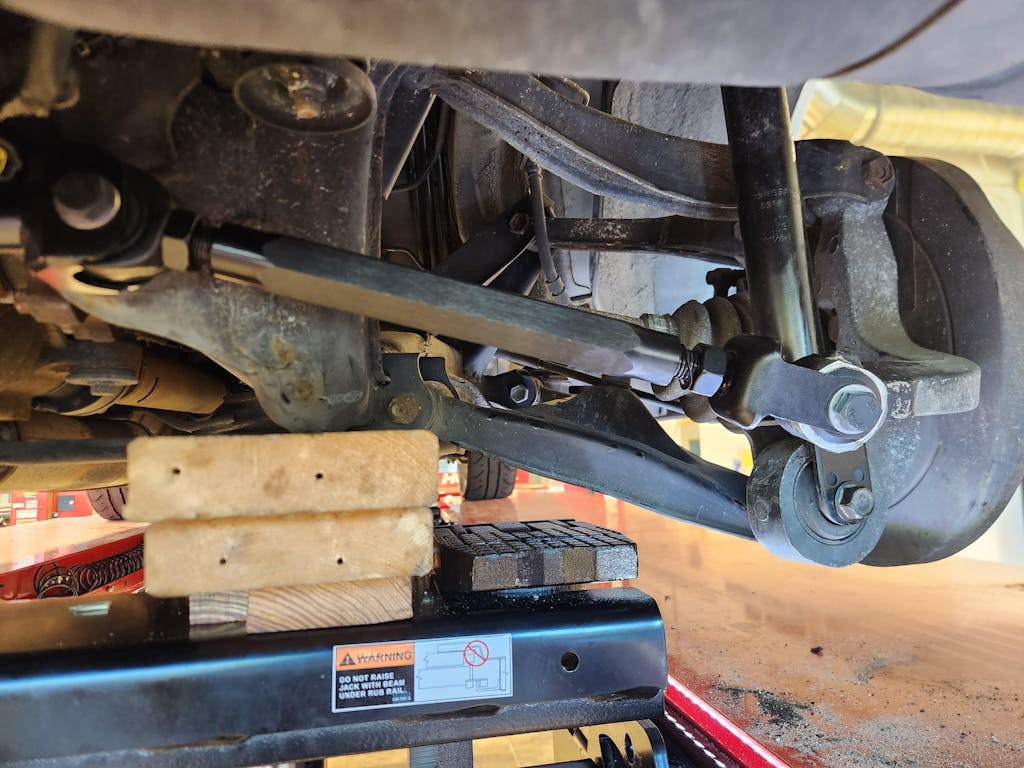

R32 hicas delete

came as described with everything needed to do the job, with fast shipping. I'm no mechanic at all me and my son installed way easier than expected

Z
Zane O'Connor

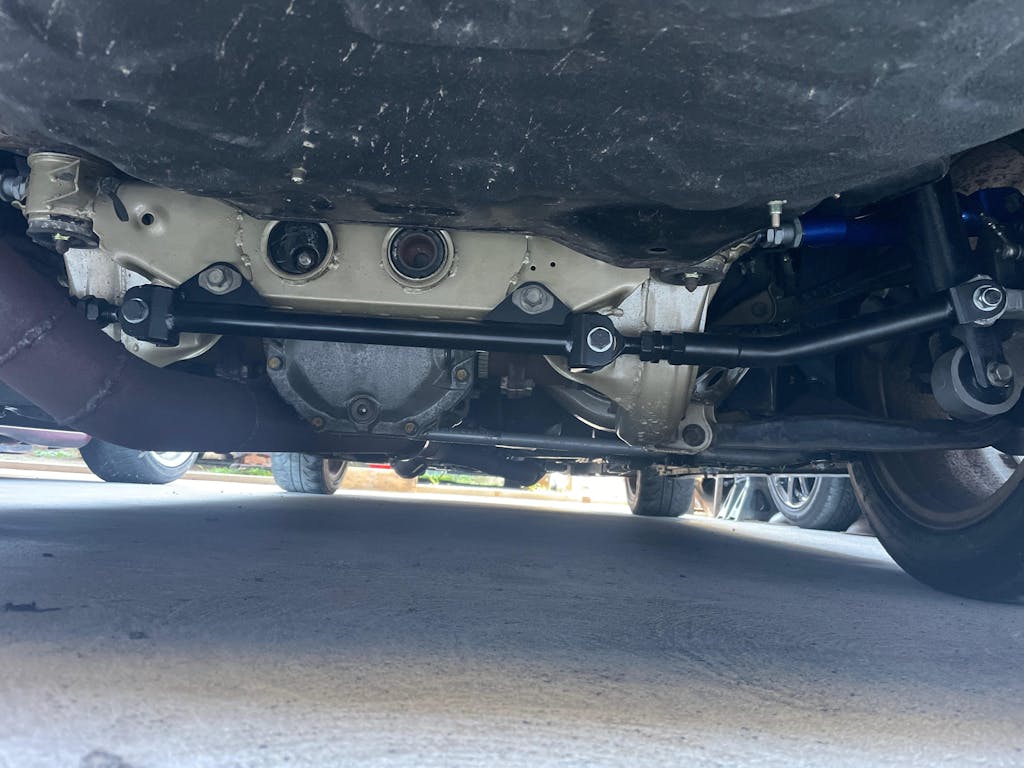

Hicas delete
