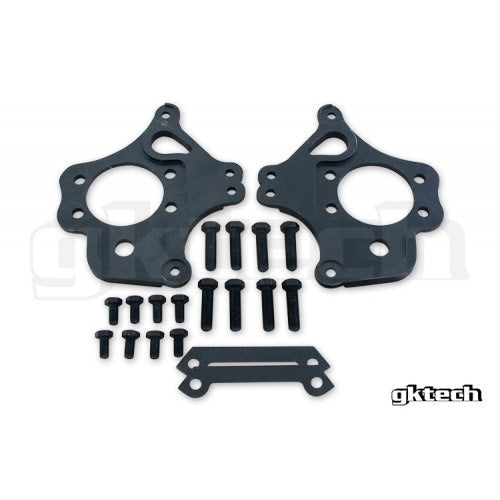

240sx/Skyline/Z32 dual caliper brackets (pair)
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.240sx/Skyline/Z32 dual caliper brackets (pair)
Albuquerque NM
8524 Indian School Rd NE
Albuquerque NM 87112
United States
Free Shipping on orders over $250
Checking Dispatch Times...![](http://us.gktech.com/cdn/shop/files/rewards.png?v=1716256803&width=50)
Order and get upto 1195 reward points
Earn points by signing up for our rewards program
The GKTECH dual dual caliper bracket is unique in that it doesn't require the use of Mustang rotors (common among others) and only spaces the hub out 0.23" (7mm's) with limited modifications required to fit.
In addition to the minimal spacing, this is also the only bracket that we're aware of that retains the factory drum e-brake.
If you don't want to waste time shopping around for all the individual parts, getting custom brake lines made up, or running generic parts that may or may not work and check out our complete kit here: 240sx/Skyline/Z32 dual caliper hydraulic e-brake setup combo
Compatible with either a pair of Z32, R32, R33 or R34 2 pot rear calipers using the corresponding rotor.
NOTE: will only fit Z32/GTR/R34 aluminium rear knuckles with some trimming of the knuckle (not too difficult)
FAQs
I've heard dual caliper brackets push your hub out?Yes, some can as much as 12mm however our brackets only push the hub out 7mm.
What modifications are required
Fitting an extra caliper in this space is not easy but this bracket does make things a lot easier and is an easy install.
Simply cut your standard brake caliper mounts off, trim your brake dust cover to suit and shave the calipers where they butt up against one another, that's all you need to do to fit this bracket.
Can I still use my drum e-brake?
Yep, you sure can. Our kit is the only that I'm aware of that allows this. It bolts straight up with no modifications required to get your drum working as it was previously.
Will this kit work with aftermarket knuckles?
These brackets are designed to be used with the OEM knuckles. They can NOT be used with aftermarket knuckles.
Will these work with OEM 240sx calipers?
No they will not. These brackets will only work with Nissan 2pot calipers and their corresponding rotor
Will these work with OEM non turbo Skyline or Z32 calipers?
No they will not. These brackets will only work with Nissan 2pot calipers and their corresponding rotor
Should I run an axle spacer and if so, what size??
By installing this bracket you are spacing the hub out 7mm, this is taken up by the driveshaft. This causing the bearings inside the driveshaft to run on the edge of the cup, which can lead to premature failures. We suggest adding axle spacers to put the stretched amount back into the driveshaft to ensure it runs further inside the cup and in turn is stronger and more reliable.
We recommend checking which size you need by jacking your car up and dropping it down on ramps, this will load the suspension to its normal operating height.
From there, disconnect the diff to driveshaft bolts and with the driveshaft in a relaxed position measure the gap. Keep in mind the distance of the plate that is supplied with this kit and factor that into the final number, that will tell you what size axle spacer you need. Simple answer for 99% of setups is 5mm if your car isn't super low / 10mm if your car is super low.
VEHICLE COMPATIBILITY
NOTE: Will NOT fit Z32/GTR/R34 aluminium rear knuckles without some trimming of the knuckle (not too difficult)
Nissan
C33 LAURELC34 LAUREL
C35 LAUREL
CEFIRO A31
R32 SKYLINE GTR
R32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS
R33 SKYLINE GTS-T
R33 SKYLINE GTS4
R34 SKYLINE GT
R34 SKYLINE GT-T
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 240SX/SILVIA
Z32 300ZX
