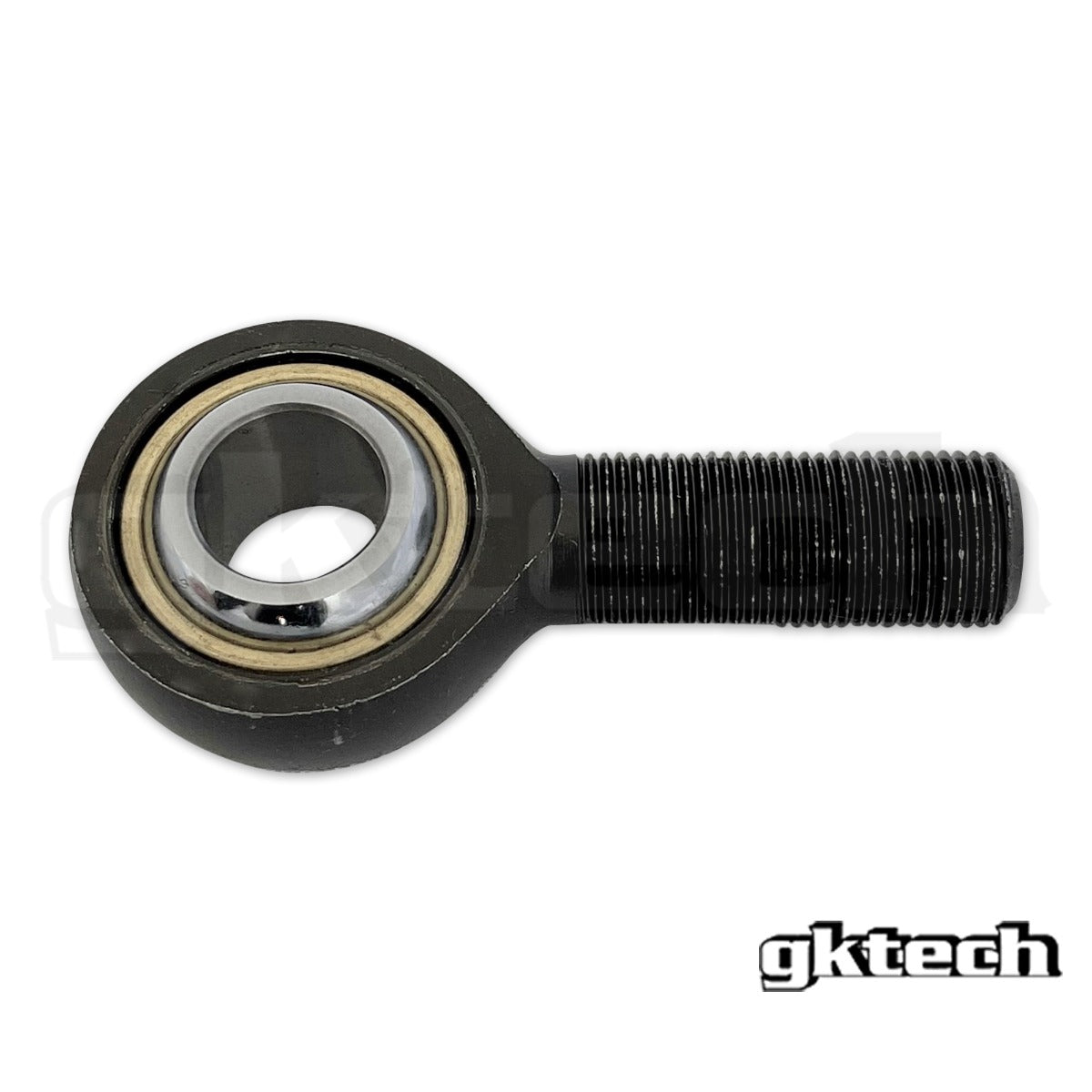

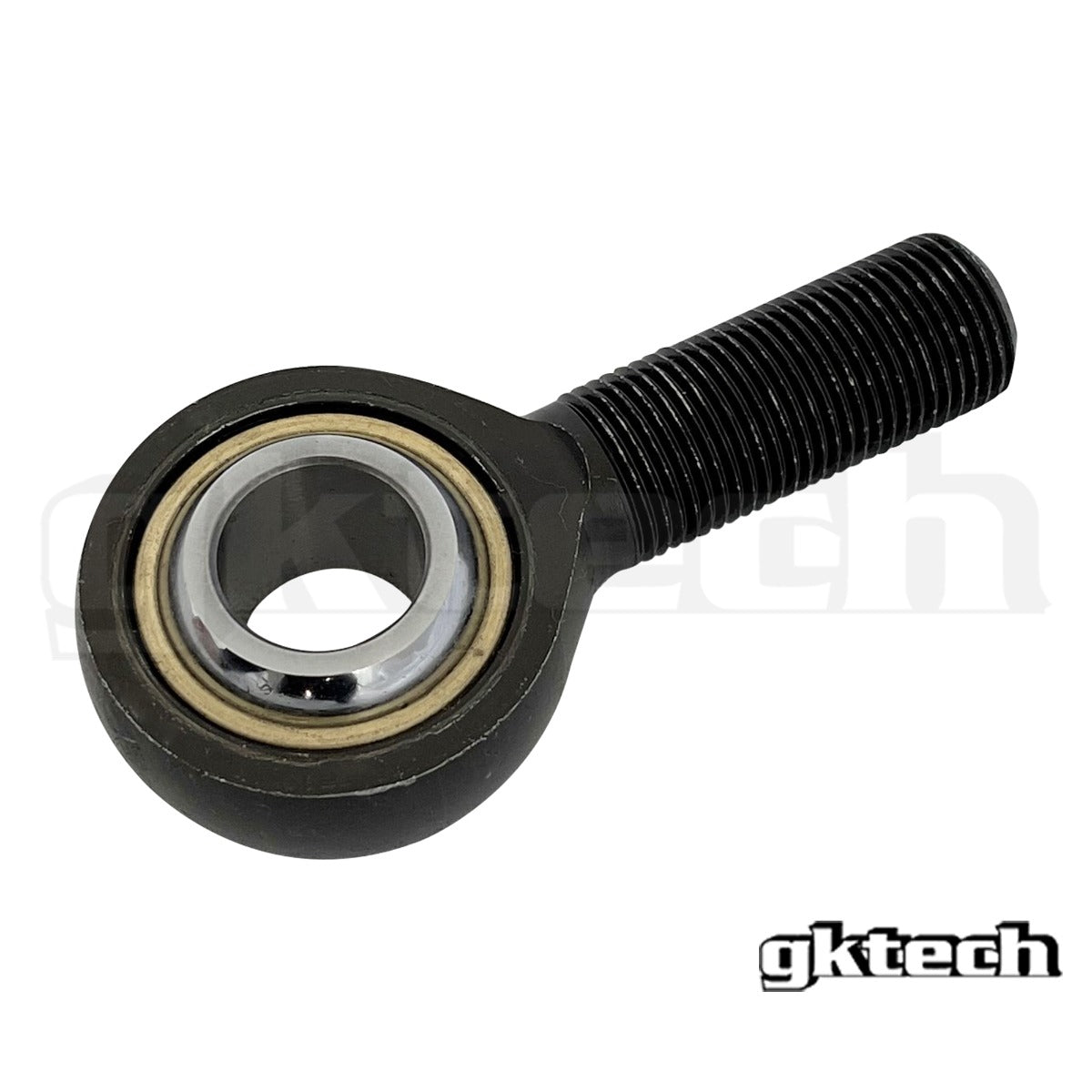

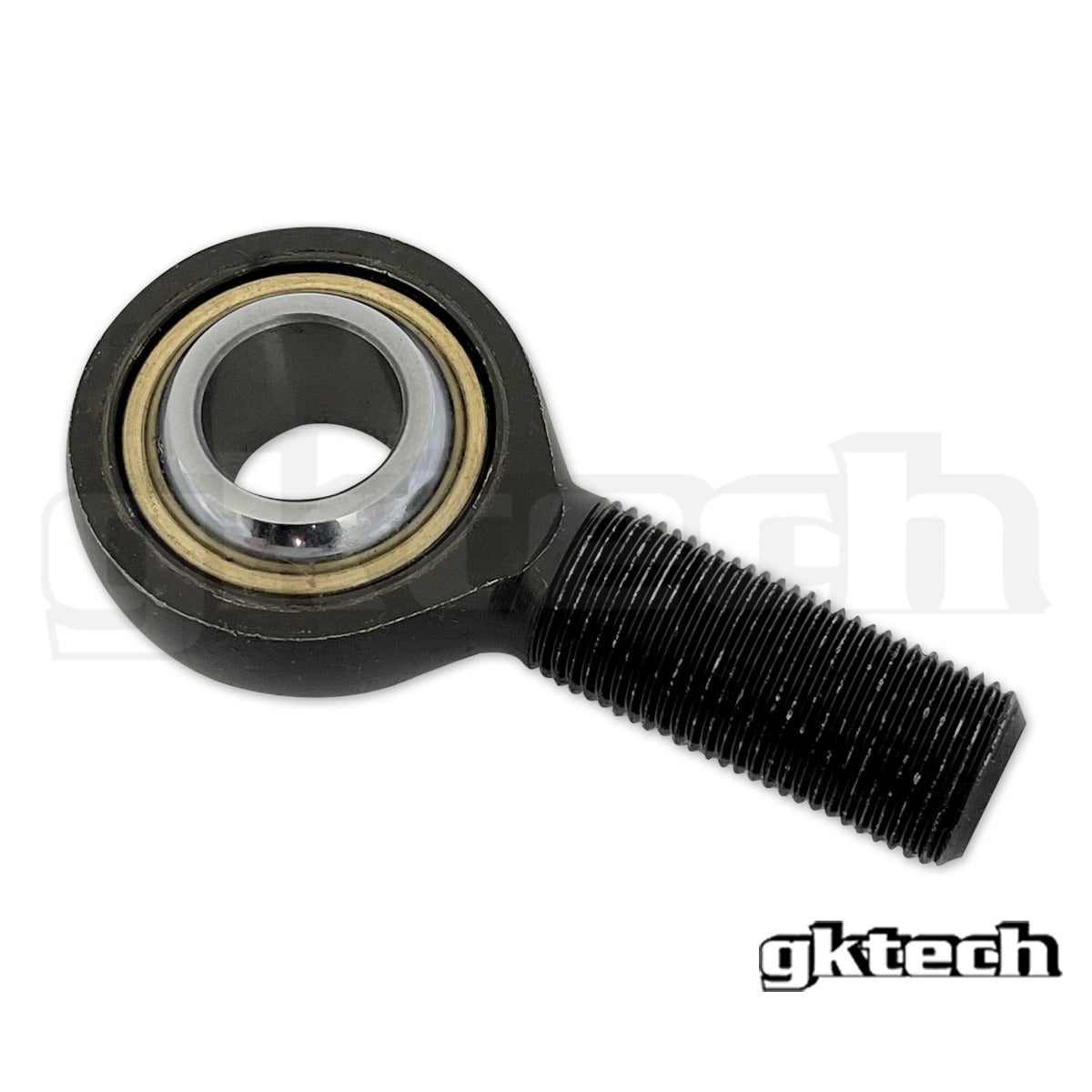

Replacement PCML12TS heim

Name: Replacement PCML12TS heim
Brand: GKTECH
SKU: PCML12TS
Price: 16.0 USD
Availability: InStock

$16.00 USD

SKU: PCML12TS

Quantity:

Q: What is backorder?

When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.

Q: Will items in my order that are in stock be shipped out first?

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.

Pickup currently unavailable at Albuquerque NM

Albuquerque NM

Pickup available, usually ready in 24 hours

8524 Indian School Rd NE
Albuquerque NM 87112
United States

📦

Free Shipping on orders over $250

Order and get upto 80 reward points

Earn points by signing up for our rewards program

Replacement PCML12TS heim Used in the following GKTECH products: R32 front upper camber arms (SKU= R32X-FUCA) and Z32 front upper camber arms (SKU = Z32X-FUCA)

Sold individually

PCML12TS

IMPERIAL	METRIC
ROD END BALL BORE SIZE	ROD END BALL BORE SIZE
0.7500 in	19.0500 mm
ROD END BALL WIDTH	ROD END BALL WIDTH
0.8750 in	22.2250 mm
THREAD LENGTH	THREAD LENGTH
1.7500 in	44.4500 mm
THREAD SIZE	THREAD SIZE
3/4 - 16 UNF LH	3/4 - 16 UNF LH
ROD END HEAD DIAMETER	ROD END HEAD DIAMETER
1.7500 in	44.4500 mm
ROD END MISALIGNMENT ANGLE	ROD END MISALIGNMENT ANGLE
24 degrees	24 degrees
ROD END STATIC LOAD CAPACITY (lbs)	ROD END STATIC LOAD CAPACITY (kg)
21,400 lbs	9,707 kg
ROD END MATERIAL	ROD END MATERIAL
Chromoly	Chromoly
LUBRICATION	LUBRICATION
PTFE lined	PTFE lined

VEHICLE COMPATIBILITY

Nissan

R32 SKYLINE GTR
R32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GT-T
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 SILVIA
Z32 300ZX
Z33 350Z
Z34 370Z

Infiniti

G35
G37
