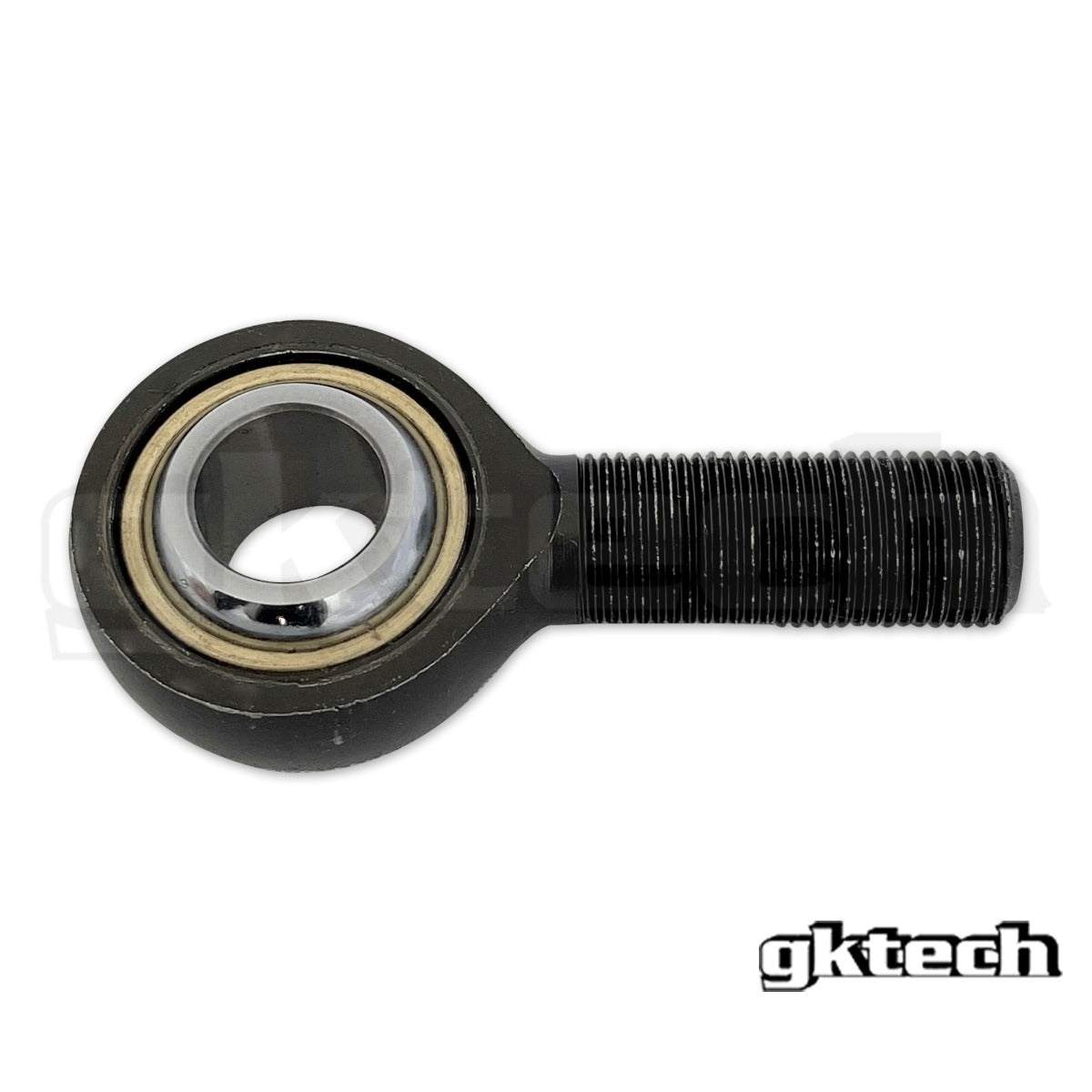

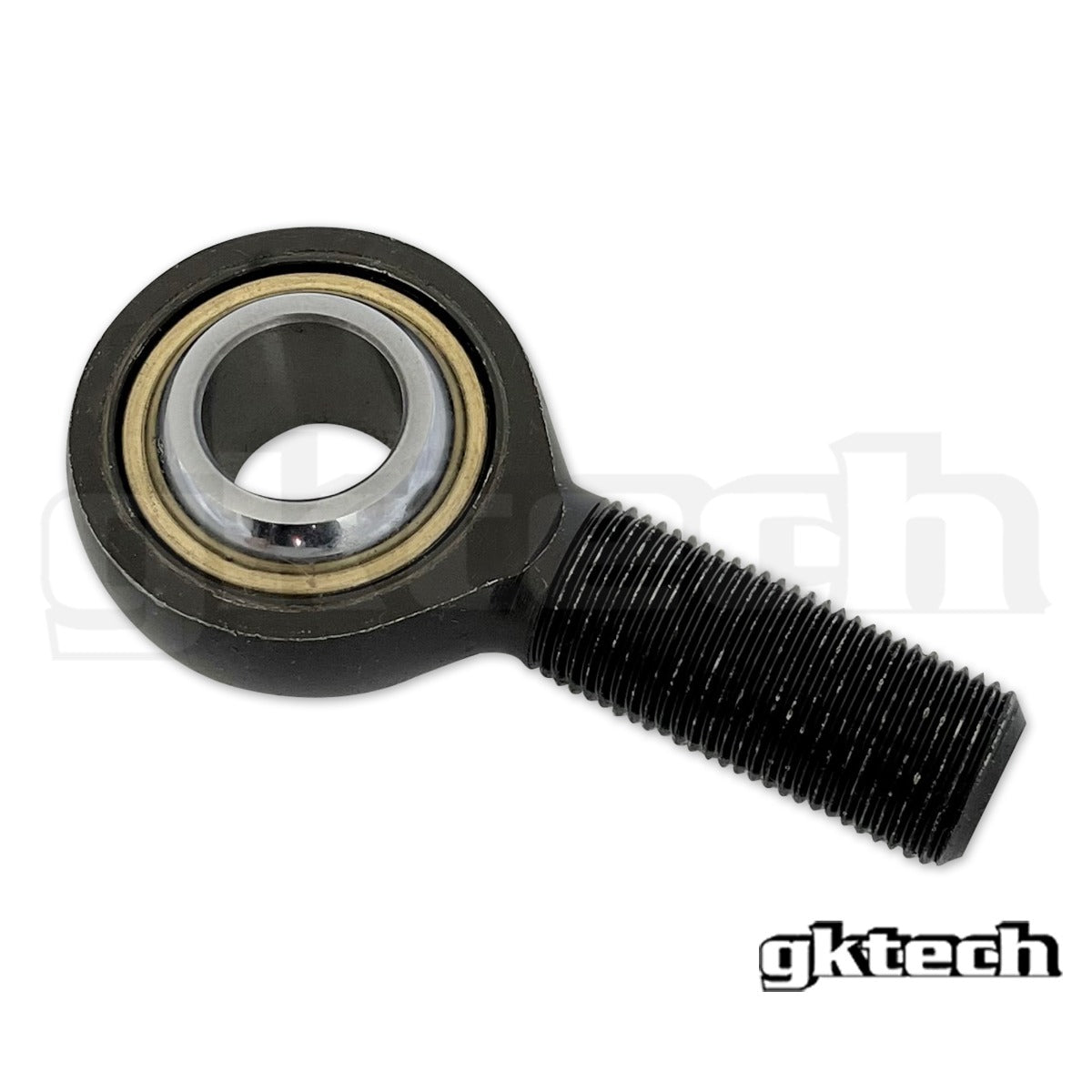

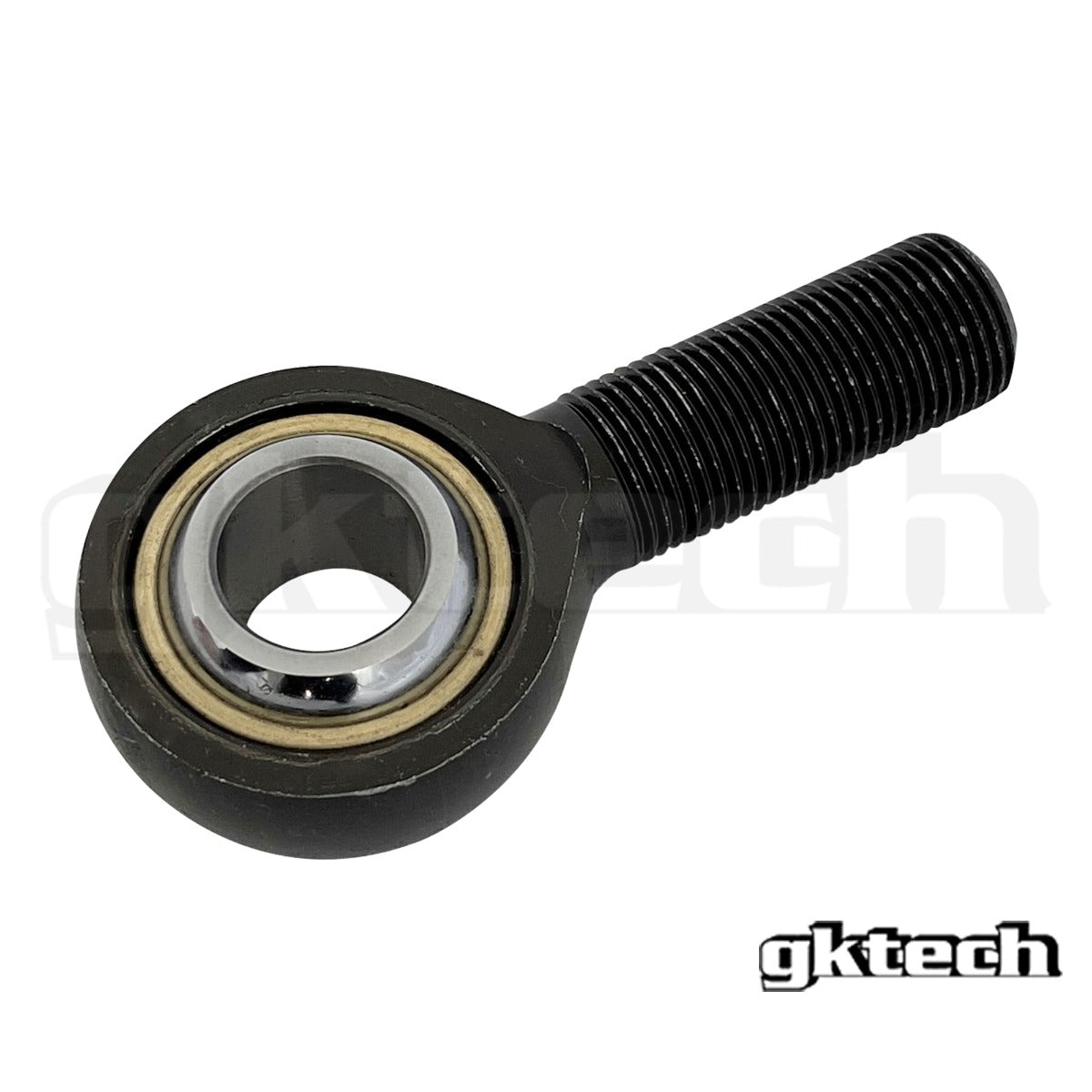

Replacement PCMR12TS heim.
Used in the following GKTECH products:
R32 front upper camber arms (SKU= R32X-FUCA) and Z32 front upper camber arms (SKU = Z32X-FUCA)
Sold individually
PCMR12TS
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.7500 in | 19.0500 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 0.8750 in | 22.2250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 1.7500 in | 44.4500 mm |
| THREAD SIZE | THREAD SIZE |
| 3/4 - 16 UNF RH | 3/4 - 16 UNF RH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 1.7500 in | 44.4500 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 24 degrees | 24 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs | 13,739 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
GKTECH
Replacement PCMR12TS heim
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
Checking Dispatch Times...
*
We do aim to achieve this every day, but please note that this is not a guarantee and is subject to daily order volumes.
Fast Dispatch
Checking Dispatch Times...
*
We do aim to achieve this every day, but please note that this is not a guarantee and is subject to daily order volumes.
Checking Dispatch Times...
*
We do aim to achieve this every day, but please note that this is not a guarantee and is subject to daily order volumes.
Free Shipping + Priority Post options available
Free USA wide shipping on orders over $230
*
We offer FREE STANDARD SHIPPING* within the USA when you purchase $230 or more in a single order.
Store Pickup
Pickup available at Albuquerque NM
Order and get reward points
Earn 5% back in reward points
Replacement PCMR12TS heim.
Used in the following GKTECH products:
R32 front upper camber arms (SKU= R32X-FUCA) and Z32 front upper camber arms (SKU = Z32X-FUCA)
Sold individually
PCMR12TS
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.7500 in | 19.0500 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 0.8750 in | 22.2250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 1.7500 in | 44.4500 mm |
| THREAD SIZE | THREAD SIZE |
| 3/4 - 16 UNF RH | 3/4 - 16 UNF RH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 1.7500 in | 44.4500 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 24 degrees | 24 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs | 13,739 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
WARNING: Cancer and Reproductive Harm. http://www.p65warnings.ca.gov
VEHICLE COMPATIBILITY
Nissan
R32 SKYLINE GTRR32 SKYLINE GTS-T
Z32 300ZX
